| Range | PowerLogic |
|---|---|

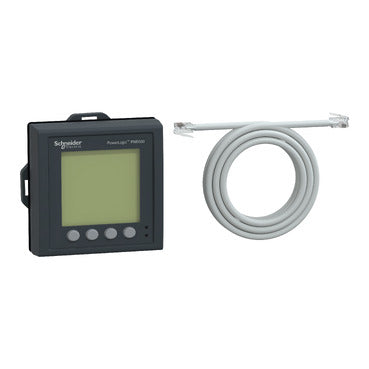

| product or component type | Remote display |
| Device application | Human-machine dialogue application |
| Range compatibility | PowerLogic PowerLogic PM5000 |
| Display type | Backlit LCD |
| Display colour | Monochrome |
|---|---|
| display resolution | 128 x 128 pixels |
| display size | 67 x 62.5 mm |
| Information displayed | Power Energy consumption Harmonic distortion Frequency Voltage Current |
| Messages display capacity | 6 lines Graphic objects (bargraph, button, light...) |
| Local signalling | Communication: LED (green) Programming indication: LED (amber) |
| Control type | 4 x push-button |
| Connector type | RJ45 |
| mounting mode | Flush-mounted |
| Mounting support | Framework remote display |
| Width | 96 mm |
| Height | 96 mm |
| Embedding depth | 21 mm |
| Projecting depth | 27 mm |
| IP degree of protection | IP52 conforming to IEC 60529 |
|---|---|
| Relative humidity | 5…95 % at 37 °C |
| Operating altitude | 0...3000 m |
| Ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 10 cm |
| Package 1 Length | 10 cm |
| Package 1 Weight | 320 g |
