Danfoss

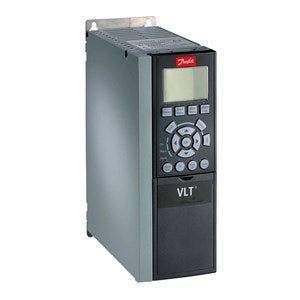

Danfoss Frequency converter VLT® AQUA Drive FC-202 134U5385
Danfoss Frequency converter VLT® AQUA Drive FC-202 134U5385
Regular price
R 13,894.77 ZAR
Regular price
R 19,849.67 ZAR
Sale price
R 13,894.77 ZAR
Unit price
/
per
SKU: Part Number:134U5385
Shipping calculated at checkout.
Couldn't load pickup availability
Frequency converter
FC-202PK55T4E20H2XGXXXXSXXXXALBXCXXXXD0
VLT® AQUA Drive FC-202
0.55 KW / 0.75 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: A2
No C1 option, MCB-107 24V DC backup
PROFINET MCA 120, No B Option
Other options according to Model code
Model code:FC-202PK55T4E20H2XGXXXXSXXXXALBXCXXXXD0
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT® AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
| Gross weight | 5 kg | ||
| Net weight | 4.7 kg | ||
| Volume | 19.867 l | ||
| EAN | 5710108014131 |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | PK55 | 0.55 KW / 0.75 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AL | PROFINET MCA 120 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | A2 | A2 | |
| Typecode Part 1 | FC-202PK55T4E20H2XGX | ||
| Typecode Part 2 | XXXSXXXXALBXCXXXXD0 | ||
| Product Catalog | GLBL | Global (Standard) | |
| Power 150% (HO) [KW] | 0.55 | ||
| Power 110% (NO) [KW] | 0.55 | ||
| Height [mm] | 268,0 | ||
| Width w/ no C options [mm] | 90,0 | ||
| Width w/ two C options [mm] | 150,0 | ||
| Depth [mm] | 205,0 | ||
| Depth with Option A/B [mm] | 220,0 | ||
| kVA | 1.25 | ||
| Power Loss NO [W] | 42 | ||
| Power Loss HO [W] | 42 | ||
| Continuous Current (NO) [A] | 1.8 | ||
| Intermittent Current (NO) [A] | 1.98 | ||
| Continuous Current (NO) [A] | 1.6 | ||
| Intermittent Current (NO) [A] | 1.76 | ||
| Continuous Current (HO) [A] | 1.8 | ||
| Intermittent Current (HO) [A] | 2.7 | ||
| Continuous Current (HO) [A] | 1.6 | ||
| Intermittent Current (HO) [A] | 2.4 | ||
| Calculated Gross Weight [kg] | 4.9 | ||
| Calculated Net Weight [kg] | 4.6 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202PK55T4E20H2XGX | ||
| Modelcode02 | XXXSXXXXALBXCXXXXD0 | ||
| Recommended Plant | ERR01 |
