ABB
Regular price
R 5,959.24 ZAR
Regular price
R 10,834.98 ZAR
Sale price
R 5,959.24 ZAR
Unit price
/
per
SKU:
Part Number:1SAJ530000R1100
Couldn't load pickup availability

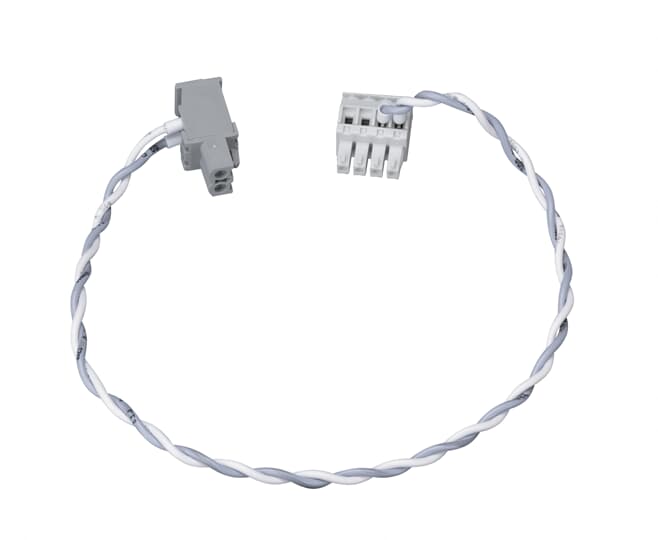

UMCIO-CAB.030 Connection Cable to connect UMC100.3 to first IO Module, e.g. UMC100.3 to VI150-FBP.0. The cable wires are twisted and unshielded.
Specifications
| Technical |
| Suitable For: |
UMC100-FBPUMC100.3DX111-FBP.0DX122-FBP.0AI111.0VI150-FBP.0VI155-FBP.0 |
| Suitable for Isolation: |
Yes |
| Suitable for Product Class: |
Universal Motor ControllersUniversal Motor Controllers Accessories |
| Tightening Torque: |
Control Circuit 0.5 N?úm |
| Fieldbus Interface Type: |
none |
| Mounting Type: |
DIN-Rail with Adapter |
| Mounting on DIN Rail: |
No |
| Recommended Screw Driver: |
Pozidriv 1 |
| Connecting Capacity: |
1x 0.75-1.5 mm?ý |
| Wire Stripping Length: |
7 mm |
| Terminal Type: |
Screw Terminals |
| Environmental |
| Degree of Protection: |
IP20 |
| RoHS Status: |
No declaration needed |
| Technical UL/CSA |
| Connecting Capacity UL/CSA: |
Flexible with Ferrule 1x 18-16 AWGRigid 1x 18-16 AWG |
| Dimensions |
| Product Net Width: |
16 mm |
| Product Net Height: |
0.026 mm |
| Product Net Depth / Length: |
320 mm |
| Product Net Weight: |
0.011 kg |
| Container Information |
| Package Level 1 Units: |
bag 1 piece |
| Package Level 1 Width: |
22.5 mm |
| Package Level 1 Height: |
78 mm |
| Package Level 1 Depth / Length: |
102 mm |
| Package Level 1 Gross Weight: |
0.011 kg |
| Package Level 1 EAN: |
4013614404160 |
| Ordering |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85444290 |
| Certificates and Declarations (Document Number) |
| ATEX Certificate: |
No |
| Declaration of Conformity - CE: |
No declaration needed |
| Instructions and Manuals: |
2CDC135013D0202 |
| RoHS Information: |
1SAA981017-2401 |
| Regulatory Compliance Mark (RCM): |
|
| Popular Downloads |
| Data Sheet, Technical Information: |
2CDC135013D0202 |
| Instructions and Manuals: |
2CDC135013D0202 |
| Classifications |
| ETIM 7: |
EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8: |
EC001604 - Fieldbus, decentr. periphery - communication module |
| EPLAN Catalog Tree: |
Electrical engineering / Protection devices / Motor overload switch |
| WEEE Category: |
Product Not in WEEE Scope |
| CN8: |
8544 42 90 |
| eClass: |
V11.0 : 27242608 |
| Object Classification Code: |
X |
