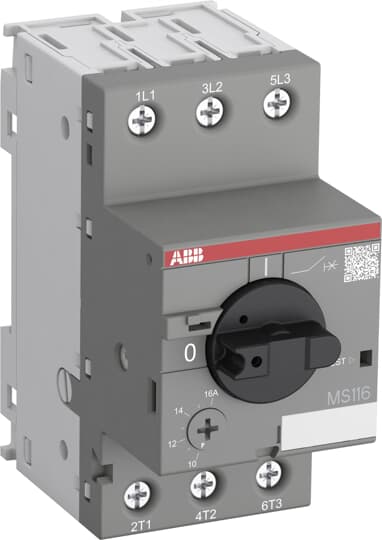

| Ordering |
| Popular Downloads |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85362010 |
| Dimensions |
| Data Sheet, Technical Information: |
2CDC131025D0201 |
| Instructions and Manuals: |
2CDC131011M6802 |
| Instructions and Manuals (Part 2): |
2CDC131060M0202 |
| Time-Current Characteristic Curve: |
1SAM200505F0011 |
| I?ýt Characteristic: |
1SAM200507F0001
1SAM200507F0002
1SAM200507F0003 |
| Cut-off Current Characteristic: |
1SAM200508F0001
1SAM200508F0002
1SAM200508F0003 |
| Dimension Diagram: |
1SAM200422F0001 |
| Technical |
| Product Net Width: |
45 mm |
| Product Net Height: |
90 mm |
| Product Net Depth / Length: |
85.6 mm |
| Product Net Weight: |
0.265 kg |
| Technical UL/CSA |
| Rated Service Short-Circuit Breaking Capacity (Ics): |
(230 V AC) 16 kA(400 V AC) 16 kA(440 V AC) 6 kA(500 V AC) 4 kA(690 V AC) 2 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): |
(230 V AC) 16 kA(400 V AC) 16 kA(440 V AC) 15 kA(500 V AC) 10 kA(690 V AC) 3 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii): |
240 A |
| Setting Range: |
10 ... 16 A |
| Rated Operational Power AC-3 (Pe): |
(400 V) Three Phase 7.5 kW |
| Rated Operational Power AC-3e (Pe): |
(400 V) Three Phase 7.5 kW |
| Rated Operational Voltage: |
Main Circuit 690 V AC |
| Rated Operational Current (Ie): |
16 A |
| Rated Operational Current AC-3 (Ie): |
16 A |
| Rated Operational Current AC-3e (Ie): |
16 A |
| Rated Frequency (f): |
Main Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
Main Circuit 6 kV |
| Rated Insulation Voltage (Ui): |
690 V |
| Power Loss: |
at Rated Operating Conditions per Pole 1.1 ... 2.8 W |
| Number of Poles: |
3 |
| Conventional Free-air Thermal Current (Ith): |
Main Circuit 16 A |
| Degree of Protection: |
Housing IP20Main Circuit Terminals IP10 |
| Pollution Degree: |
3 |
| Electrical Durability: |
100000 cycle |
| Mechanical Durability: |
100000 cycle |
| Terminal Type: |
Screw Terminals |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm?ýFlexible 1/2x 0.75 ... 2.5 mm?ýRigid 1/2x 1 ... 4 mm?ý |
| Tightening Torque: |
Main Circuit 0.8 ... 1.2 N?úm |
| Wire Stripping Length: |
Main Circuit 9 mm |
| Recommended Screw Driver: |
Pozidriv 2 |
| Mounting Position: |
Any; 1 ... 6 |
| Mounting on DIN Rail: |
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance: |
Electrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm |
| Actuator Type: |
Rotary Handle |
| Contact Position Indication: |
ON / OFF |
| Standards: |
IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1UL 60947-1UL 60947-4-1 |
| Environmental |
| Short-Circuit Current Rating (SCCR): |
Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 18 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 5 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 18 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 5 kA |
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Ampere Rating UL/CSA: |
16 A |
| Horsepower Rating UL/CSA: |
(200 V AC) Three Phase 3 Hp(208 V AC) Three Phase 3 Hp(220 ... 240 V AC) Three Phase 5 Hp(440 ... 480 V AC) Three Phase 10 Hp(550 ... 600 V AC) Three Phase 10 Hp |
| Full Load Amps Motor Use: |
(200 V AC) Three Phase 11 A(208 V AC) Three Phase 10.6 A(220 ... 240 V AC) Three Phase 15.2 A(440 ... 480 V AC) Three Phase 14 A(550 ... 600 V AC) Three Phase 11 A |
| Locked Rotor Amps: |
(200 V AC) Three Phase 73.6 A(208 V AC) Three Phase 71 A(220 ... 240 V AC) Three Phase 92 A(440 ... 480 V AC) Three Phase 81 A(550 ... 600 V AC) Three Phase 64.8 A |
| General Use Rating UL/CSA: |
(600 V AC) 16 A |
| Connecting Capacity Main Circuit UL/CSA: |
Flexible 1/2x 16-8 AWGStranded 1/2x 16-8 AWG |
| Tightening Torque UL/CSA: |
Main Circuit 10 in?úlb |
| Certificates and Declarations (Document Number) |
| Ambient Air Temperature: |
|
| Ambient Air Temperature Compensation: |
|
| Maximum Operating Altitude Permissible: |
|
| Resistance to Shock acc. to IEC 60068-2-27: |
|
| Resistance to Vibrations acc. to IEC 60068-2-6: |
|
| RoHS Status: |
|
| Container Information |
| ABS Certificate: |
1SAA963000-0104 |
| BV Certificate: |
1SAA963000-0204 |
| CB Certificate: |
1SAA963005-2003
1SAA963006-2001 |
| CQC Certificate: |
CQC2011010307506570
CQC2014010307744794 |
| cUL Certificate: |
cUL_E137861 |
| Cut-off Current Characteristic: |
1SAM200508F0001
1SAM200508F0002
1SAM200508F0003 |
| Declaration of Conformity - CCC: |
2020980307003705
2020980307003043 |
| Declaration of Conformity - CE: |
1SAD938523-0060 |
| Declaration of Conformity - UKCA: |
1SAD938502-1060 |
| DNV Certificate: |
1SAA963000-0304 |
| DNV GL Certificate: |
1SAA963000-0304 |
| EAC Certificate: |
1SAA963000-2701 |
| Environmental Information: |
1SAC200050H0009 |
| GL Certificate: |
1SAA963000-0402 |
| I?ýt Characteristic: |
1SAM200507F0001
1SAM200507F0002
1SAM200507F0003 |
| Instructions and Manuals: |
2CDC131011M6802 |
| Instructions and Manuals (Part 2): |
2CDC131060M0202 |
| KC Certificate: |
1SAA963000-1501 |
| LR Certificate: |
1SAA963000-0505 |
| RMRS Certificate: |
1SAA918000-0704 |
| RoHS Information: |
1SAD938517-0060 |
| Time-Current Characteristic Curve: |
1SAM200505F0011 |
| UL Certificate: |
UL_E137861 |
| Classifications |
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
92 mm |
| Package Level 1 Depth / Length: |
95 mm |
| Package Level 1 Height: |
50 mm |
| Package Level 1 Gross Weight: |
0.28 kg |
| Package Level 1 EAN: |
4013614320347 |
| Package Level 2 Units: |
carton 40 piece |
| Package Level 2 Width: |
280 mm |
| Package Level 2 Depth / Length: |
395 mm |
| Package Level 2 Height: |
210 mm |
| Package Level 2 Gross Weight: |
11.586 kg |
| Package Level 2 EAN: |
4013614408717 |
