ABB
Regular price
R 348.84 ZAR
Regular price
R 634.25 ZAR
Sale price
R 348.84 ZAR
Unit price
/
per
SKU:
Part Number:1SAM201904R1002
Couldn't load pickup availability

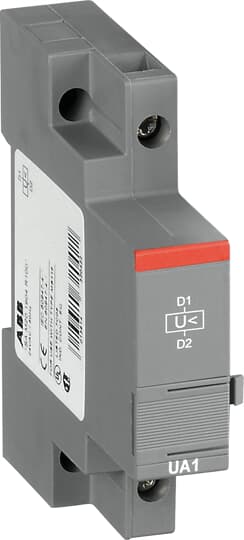

UA1-48 Undervoltage release 48V
Specifications
| Ordering |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85365080 |
| Popular Downloads |
| Data Sheet, Technical Information: |
1SBC100192C02-- |
| Instructions and Manuals: |
2CDC131011M6802
2CDC131034M6801
2CDC131022M6802
2CDC131120M6801
2CDC131081M6801
2CDC131082M6801 |
| Dimensions |
| Product Net Width: |
18 mm |
| Product Net Height: |
90 mm |
| Product Net Depth / Length: |
75.5 mm |
| Product Net Weight: |
0.1 kg |
| Technical |
| Terminal Type: |
Screw Terminals |
| Rated Control Supply Voltage (Us): |
(50 Hz) 48 V |
| Rated Impulse Withstand Voltage (Uimp): |
Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui): |
690 V |
| Connecting Capacity Auxiliary Circuit: |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 1x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.75 ... 1.5 mm?ýFlexible 1/2x 0.75 ... 2.5 mm?ýRigid 1/2x 1 ... 4 mm?ý |
| Tightening Torque: |
Auxiliary Circuit 0.8 ... 1.2 N?úm |
| Wire Stripping Length: |
Auxiliary Circuit 10 mm |
| Recommended Screw Driver: |
Pozidriv 2 |
| Standards: |
CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-4-1UL 508UL 60947-1UL 60947-4-1 |
| Product Name: |
Undervoltage Release |
| Suitable For: |
MS116MS132MO132MS165MO165 |
| Suitable for Product Class: |
Manual Motor Starter |
| Accessory Group: |
Electrical |
| Accessory Type: |
Undervoltage Release |
| Remarks: |
The mechanical and electrical durability of manual motor starters in combination with UA1/AA1 is reduced. Values are provided on request. |
| Technical UL/CSA |
| Connecting Capacity Auxiliary Circuit UL/CSA: |
Flexible 1/2x 16-12 AWGStranded 1/2x 16-12 AWG |
| Tightening Torque UL/CSA: |
Auxiliary Circuit 7 in?úlb |
| Environmental |
| Ambient Air Temperature: |
Operation -25 ... +60 ?øCStorage -50 ... +80 ?øC |
| Resistance to Shock acc. to IEC 60068-2-27: |
11 ms Pulse 15g |
| RoHS Status: |
Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Certificates and Declarations (Document Number) |
| ABS Certificate: |
1SAA963001-0101 |
| BV Certificate: |
1SAA963002-0201 |
| cUL Certificate: |
cUL_E137861 |
| Declaration of Conformity - CE: |
1SAD938508-01971SAD938510-01881SAD938519-01251SAD938523-00601SAD938504-01961SAD938507-01901SAD938504-01981SAD938506-01911SAD938510-0183
|
| Declaration of Conformity - UKCA: |
1SAD938502-10601SAD938503-11251SAD938503-11881SAD938503-1198
|
| DNV GL Certificate: |
1SAA963001-0304 |
| Instructions and Manuals: |
2CDC131011M68022CDC131034M68012CDC131022M68022CDC131120M68012CDC131081M68012CDC131082M6801
|
| LR Certificate: |
1SAA963001-05021SAA918001-0501
|
| RINA Certificate: |
1SAA963002-0802 |
| RoHS Information: |
1SAD938504-01961SAD938507-01901SAD938504-01981SAD938506-01971SAD938506-01911SAD938508-01881SAD938509-01831SAD938516-01251SAD938522-00601SAD938503-0304
|
| UL Certificate: |
UL_E137861 |
| Container Information |
| Package Level 1 Width: |
93 mm |
| Package Level 1 Depth / Length: |
25 mm |
| Package Level 1 Height: |
80 mm |
| Package Level 1 Gross Weight: |
0.11 kg |
| Package Level 1 EAN: |
4013614320439 |
| Package Level 1 Units: |
box 1 piece |
| Package Level 2 Width: |
280 mm |
| Package Level 2 Depth / Length: |
395 mm |
| Package Level 2 Height: |
210 mm |
| Package Level 2 Gross Weight: |
9.175 kg |
| Package Level 2 EAN: |
4013614526091 |
| Package Level 2 Units: |
carton 80 piece |
| Classifications |
| Object Classification Code: |
Q |
| ETIM 4: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: |
EC001022 - Under voltage coil |
| ETIM 6: |
EC001022 - Under voltage coil |
| ETIM 7: |
EC001022 - Under voltage coil |
| ETIM 8: |
EC001022 - Under voltage coil |
| eClass: |
V11.0 : 27370417 |
| UNSPSC: |
39121521 |
| IDEA Granular Category Code (IGCC): |
4148 >> Under voltage coil |
| E-Number (Sweden): |
3112023 |
