ABB
Regular price
R 28.80 ZAR
Regular price
R 52.36 ZAR
Sale price
R 28.80 ZAR
Unit price
/
per
SKU:
Part Number:1SBN011010T1001
Couldn't load pickup availability

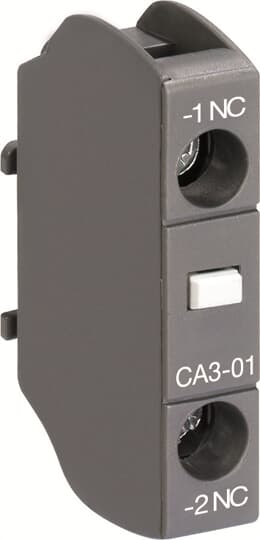

CA3-01 Auxiliary Contact Block
Specifications
| Technical |
| Suitable For: |
AS09AS12AS16ASL09ASL12ASL16VAS09VAS12VAS16VASL09VASL12VASL16NSNSL |
| Rated Operational Voltage: |
Auxiliary Circuit 690 VMain Circuit 690 V |
| Rated Insulation Voltage (Ui): |
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| Rated Operational Current AC-15 (Ie): |
(500 V) NC 2(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| Rated Short-time Withstand Current Low Voltage (Icw): |
for 0.1 s 140 Afor 1 s 100 A |
| Rated Frequency (f): |
Auxiliary Circuit 50 / 60 Hz |
| Number of Auxiliary Contacts NC: |
1 |
| Number of Auxiliary Contacts NO: |
0 |
| Low Coil Consumption: |
No |
| Tightening Torque: |
Auxiliary Circuit 1 N?úm |
| Wire Stripping Length: |
Auxiliary Circuit 9 mm |
| Terminal Type: |
Screw Terminals |
| Environmental |
| Degree of Protection: |
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Environmental Information: |
1SBD250133E1001 |
| Technical UL/CSA |
| Tightening Torque UL/CSA: |
Auxiliary Circuit 9 in?úlb |
| Dimensions |
| Product Net Width: |
44.2 mm |
| Product Net Height: |
33.5 mm |
| Product Net Depth / Length: |
9.5 mm |
| Product Net Weight: |
0.011 kg |
| Container Information |
| Package Level 1 Units: |
10 piece |
| Package Level 1 Width: |
130 mm |
| Package Level 1 Height: |
64 mm |
| Package Level 1 Depth / Length: |
45 mm |
| Package Level 1 Gross Weight: |
0.11 kg |
| Package Level 1 EAN: |
3471523095038 |
| Package Level 2 Units: |
400 piece |
| Package Level 2 Width: |
270 mm |
| Package Level 2 Height: |
220 mm |
| Package Level 2 Depth / Length: |
360 mm |
| Package Level 2 Gross Weight: |
4.6 kg |
| Ordering |
| Minimum Order Quantity: |
10 piece |
| Customs Tariff Number: |
85389099 |
| E-Number (Sweden): |
3210518 |
| Certificates and Declarations (Document Number) |
| CB Certificate: |
CB_CN_32922 |
| CCC Certificate: |
CCC_2007010305252103 |
| CQC Certificate: |
CQC2007010305252103 |
| Declaration of Conformity - CCC: |
2020980305001186 |
| Declaration of Conformity - CE: |
1SBD250017U1000 |
| Declaration of Conformity - UKCA: |
1SBD250052U1000 |
| Environmental Information: |
1SBD250133E1001 |
| GOST Certificate: |
GOST_POCCCNME77B07822.pdf |
| Instructions and Manuals: |
1SBC101020M9701 |
| RoHS Information: |
1SBD251004E1001 |
| UL Certificate: |
UL_220108-E312527A |
| UL Listing Card: |
NOA_E312527.pdf |
| Popular Downloads |
| Instructions and Manuals: |
1SBC101020M9701 |
| UL Listing Card: |
NOA_E312527.pdf |
| Classifications |
| ETIM 7: |
EC000041 - Auxiliary contact block |
| ETIM 8: |
EC000041 - Auxiliary contact block |
| WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: |
Business To Business |
| CN8: |
8538 90 99 |
| UNSPSC: |
39121522 |
| IDEA Granular Category Code (IGCC): |
4743 >> Auxiliary contact block |
| Object Classification Code: |
K |
