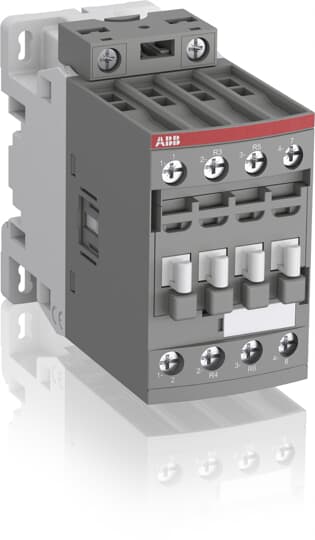

| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85364900 |
| Popular Downloads |
|---|
| Instructions and Manuals: |
1SBC101027M6801 |
| Dimension Diagram: |
DNV_TAE00001AF-4 |
| Dimensions |
|---|
| Product Net Width: |
45 mm |
| Product Net Depth / Length: |
101 mm |
| Product Net Height: |
86 mm |
| Product Net Weight: |
0.4 kg |
| Technical |
|---|
| Number of Main Contacts NO: |
2 |
| Number of Main Contacts NC: |
2 |
| Number of Auxiliary Contacts NO: |
0 |
| Number of Auxiliary Contacts NC: |
0 |
| Standards: |
IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N?ø14 |
| Rated Operational Voltage: |
Main Circuit 690 V |
| Rated Frequency (f): |
Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): |
acc. to IEC 60947-4-1, Open Contactors q = 40 ?øC 55 A |
| Rated Operational Current AC-1 (Ie): |
(690 V) 40 ?øC 45 A(690 V) 60 ?øC 40 A(690 V) 70 ?øC 32 A |
| Rated Operational Current AC-3 (Ie): |
(415 V) 60 ?øC 21.2 A(440 V) 60 ?øC 20 A(500 V) 60 ?øC 17.6 A(690 V) 60 ?øC 10.5 A(380 / 400 V) 60 ?øC 22 A(220 / 230 / 240 V) 60 ?øC 23.2 A |
| Rated Operational Power AC-3 (Pe): |
(400 V) 11 kW(415 V) 11 kW(440 V) 11 kW(500 V) 11 kW(690 V) 9 kW(220 / 230 / 240 V) 5.5 kW |
| Rated Short-time Withstand Current Low Voltage (Icw): |
at 40 ?øC Ambient Temp, in Free Air, from a Cold State 10 s 300 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 15 min 55 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 1 s 450 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 30 s 225 Afor 1 s -empty- A |
| Maximum Electrical Switching Frequency: |
(AC-1) 600 cycles per hour |
| Rated Insulation Voltage (Ui): |
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): |
6 kV |
| Maximum Mechanical Switching Frequency: |
3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): |
50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V |
| Operate Time: |
Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| Mounting on DIN Rail: |
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting by Screws (not supplied): |
2 x M4 screws placed diagonally |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1/2x 1.5 ... 16 mm?ýFlexible with Insulated Ferrule 1x 1.5 ... 16 mm?ýFlexible with Insulated Ferrule 2x 1.5 ... 16 mm?ýRigid 1/2x 1.5 ... 16 mm?ý |
| Connecting Capacity Control Circuit: |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 1x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.75 ... 1.5 mm?ýRigid 1/2x 1 ... 2.5 mm?ý |
| Wire Stripping Length: |
Control Circuit 10 mmMain Circuit 12 mm |
| Degree of Protection: |
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type: |
Screw Terminals |
| Technical UL/CSA |
|---|
| General Use Rating UL/CSA: |
(600 V AC) 45 A |
| Tightening Torque UL/CSA: |
Control Circuit 11 in?úlbMain Circuit 22 in?úlb |
| Environmental |
|---|
| Ambient Air Temperature: |
Close to Contactor for Storage -60 ... +80 ?øCNear Contactor for Operation in Free Air -40 ... 70 ?øC |
| Climatic Withstand: |
Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible: |
Without Derating 3000 m |
| Resistance to Vibrations acc. to IEC 60068-2-6: |
5 ... 300 Hz 4 g closed position / 2 g open position |
| Resistance to Shock acc. to IEC 60068-2-27: |
Closed, Shock Direction: A 30 gClosed, Shock Direction: B1 25 gClosed, Shock Direction: B2 15 gClosed, Shock Direction: C1 25 gClosed, Shock Direction: C2 25 gOpen, Shock Direction: A 25 gOpen, Shock Direction: B1 5 gOpen, Shock Direction: B2 10 gOpen, Shock Direction: C1 20 gOpen, Shock Direction: C2 20 g |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) |
|---|
| ABS Certificate: |
ABS_20-2060694-PDA |
| CB Certificate: |
CB_SE-96553M1 |
| CCC Certificate: |
CCC_2010010304445623 |
| CQC Certificate: |
CQC2010010304445623CQC2020010304294316
|
| Declaration of Conformity - CCC: |
20209803040012542020980304001052
|
| Declaration of Conformity - CE: |
1SBD250001U1000 |
| Declaration of Conformity - UKCA: |
1SBD250032U1000 |
| EAC Certificate: |
EAC_RU_FRME77B03447 |
| Environmental Information: |
1SBD250153E1000 |
| GL Certificate: |
DNV-GL_TAE00001AF-3 |
| GOST Certificate: |
GOST_POCCFR.ME77.B07175.pdf |
| Instructions and Manuals: |
1SBC101027M6801 |
| KC Certificate: |
KC_HW02016-15002C |
| LR Certificate: |
LRS_1300087E1 |
| RINA Certificate: |
RINA_ELE084013XG |
| RMRS Certificate: |
RMRS_1802705280 |
| RoHS Information: |
1SBD250001U1000 |
| UL Certificate: |
UL_20171228-E319322_3_1 |
| UL Listing Card: |
UL_E319322 |
| Container Information |
|---|
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
87 mm |
| Package Level 1 Depth / Length: |
103 mm |
| Package Level 1 Height: |
47 mm |
| Package Level 1 Gross Weight: |
0.4 kg |
| Package Level 1 EAN: |
3471523116443 |
| Package Level 2 Units: |
box 18 piece |
| Package Level 2 Width: |
250 mm |
| Package Level 2 Depth / Length: |
300 mm |
| Package Level 2 Height: |
315 mm |
| Package Level 2 Gross Weight: |
14.4 kg |
| Package Level 3 Units: |
864 piece |
| Classifications |
|---|
| Object Classification Code: |
Q |
| ETIM 4: |
EC000066 - Magnet contactor, AC-switching |
| ETIM 5: |
EC000066 - Magnet contactor, AC-switching |
| ETIM 6: |
EC000066 - Power contactor, AC switching |
| ETIM 7: |
EC000066 - Power contactor, AC switching |
| ETIM 8: |
EC000066 - Power contactor, AC switching |
| eClass: |
V11.0 : 27371003 |
| UNSPSC: |
39121529 |
| E-Number (Finland): |
3705847 |
| E-Number (Sweden): |
3211517 |
