ABB
Regular price
R 688.10 ZAR
Regular price
R 1,251.09 ZAR
Sale price
R 688.10 ZAR
Unit price
/
per
SKU:
Part Number:1SAZ901901R1001
Couldn't load pickup availability

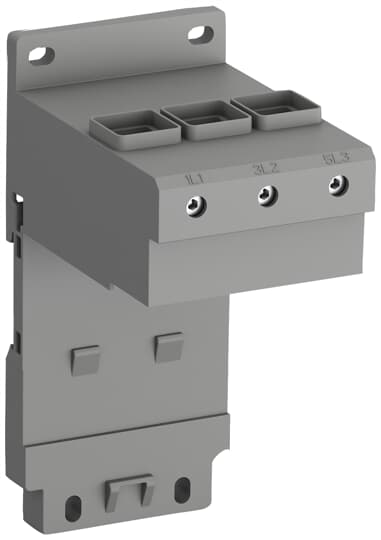

DB96 Single mounting kit for for TF96 and EF96
Specifications
| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85389099 |
| Popular Downloads |
|---|
| Instructions and Manuals: |
2CDC107047M6803 |
| Dimensions |
|---|
| Product Net Width: |
70 mm |
| Product Net Height: |
157 mm |
| Product Net Depth / Length: |
102 mm |
| Product Net Weight: |
0.19 kg |
| Technical |
|---|
| Rated Operational Voltage: |
Main Circuit 1000 V AC |
| Rated Frequency (f): |
Main Circuit 60 HzMain Circuit 50 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
Main Circuit 8 kV |
| Rated Insulation Voltage (Ui): |
1000 V |
| Number of Poles: |
3 |
| Degree of Protection: |
IP20 |
| Pollution Degree: |
3 |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1x 6 ... 50 mm?ýFlexible with Ferrule 2x 6 ... 35 mm?ýFlexible with Insulated Ferrule 1x 6 ... 50 mm?ýFlexible with Insulated Ferrule 2x 6 ... 16 mm?ýFlexible 1x 6 ... 70 mm?ýFlexible 2x 6 ... 35 mm?ýRigid 1x 6 ... 70 mm?ýRigid 2x 6 ... 35 mm?ý |
| Tightening Torque: |
Main Circuit 6 N?úm |
| Wire Stripping Length: |
Main Circuit 22 mm |
| Recommended Screw Driver: |
M8Hexagon 4 |
| Mounting Position: |
1 ... 6 |
| Suitable For: |
TF96EF96 |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA: |
Flexible 1x 8-1 AWGFlexible 2x 8-3 AWGStranded 1x 8-1 AWGStranded 2x 8-2 AWG |
| Tightening Torque UL/CSA: |
Main Circuit 55 in?úlb |
| Environmental |
|---|
| Resistance to Shock acc. to IEC 60068-2-27: |
11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6: |
5g / 3 ... 150 Hz |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations (Document Number) |
|---|
| Declaration of Conformity - CE: |
1SAD938512-01871SAD938519-0180
|
| Declaration of Conformity - UKCA: |
1SAD938501-11871SAD938502-1180
|
| Instructions and Manuals: |
2CDC107047M6803 |
| RoHS Information: |
1SAD938512-01871SAD938519-0180
|
| UL Certificate: |
E48139-20130329 |
| Container Information |
|---|
| Package Level 1 Units: |
1 piece |
| Package Level 1 Width: |
76 mm |
| Package Level 1 Height: |
160 mm |
| Package Level 1 Depth / Length: |
111 mm |
| Package Level 1 Gross Weight: |
0.24 kg |
| Package Level 1 EAN: |
4013614501524 |
| Classifications |
|---|
| ETIM 5: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: |
EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass: |
V11.0 : 27371392 |
| UNSPSC: |
39122221 |
| IDEA Granular Category Code (IGCC): |
5219 >> Switch part or accessory |
| E-Number (Sweden): |
3210251 |
