| Ordering |
|---|
| Popular Downloads |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85364900 |
| Dimensions |
|---|
| Data Sheet, Technical Information: |
2CDC106023D0201 |
| Data Sheet, Technical Information (Part 2): |
1SAC200122W0001 |
| Data Sheet, Technical Information (Part 3): |
1SAZ700504 |
| Instructions and Manuals: |
2CDC106022M6802 |
| Instructions and Manuals (Part 2): |
2CDC106076M6801 |
| Time-Current Characteristic Curve: |
1SAZ700506F0023 |
| Dimension Diagram: |
1SAZ700405F0001 |
| Technical |
|---|
| Product Net Width: |
45 mm |
| Product Net Height: |
88.3 mm |
| Product Net Depth / Length: |
70.5 mm |
| Product Net Weight: |
0.145 kg |
| Technical UL/CSA |
|---|

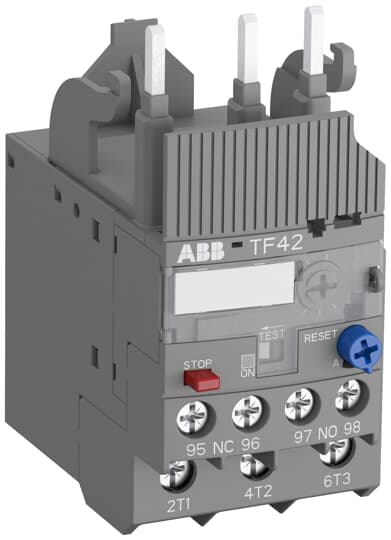

| Setting Range: |
35 ... 38 A |
| Rated Operational Voltage: |
Auxiliary Circuit 600 V AC/DCMain Circuit 690 V ACMain Circuit 600 V DC |
| Rated Operational Current (Ie): |
38 A |
| Rated Frequency (f): |
Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCMain Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
Auxiliary Circuit 6 kVMain Circuit 6 kV |
| Rated Insulation Voltage (Ui): |
690 V |
| Number of Poles: |
3 |
| Number of Auxiliary Contacts NC: |
1 |
| Number of Auxiliary Contacts NO: |
1 |
| Number of Protected Poles: |
3 |
| Conventional Free-air Thermal Current (Ith): |
Auxiliary Circuit NC 6 AAuxiliary Circuit NO 4 A |
| Rated Operational Current AC-15 (Ie): |
(120 V) NC 3 A(120 V) NO 0.5 A(240 V) NC 3 A(240 V) NO 0.5 A(400 V) NC 0.75 A(400 V) NO 0.5 A(500 V) NC 0.75 A(500 V) NO 0.5 A |
| Rated Operational Current DC-13 (Ie): |
(125 V) NC 0.55 A(125 V) NO 0.55 A(24 V) NC 1.25 A(24 V) NO 1.25 A(250 V) NC 0.27 A(250 V) NO 0.27 A(500 V) NC 0.15 A(500 V) NO 0.15 A(60 V) NC 0.55 A(60 V) NO 0.55 A |
| Degree of Protection: |
IP20 |
| Pollution Degree: |
3 |
| Connecting Capacity Auxiliary Circuit: |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 1x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.75 ... 1.5 mm?ýFlexible 1/2x 0.75 ... 1 mm?ýFlexible 1/2x 1 ... 2.5 mm?ýRigid 1/2x 0.75 ... 4 mm?ý |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1/2x 2.5 ... 10 mm?ýFlexible with Ferrule 1/2x 1.5 ... 2.5 mm?ýFlexible with Insulated Ferrule 1/2x 1.5 ... 6 mm?ýFlexible 1/2x 2.5 ... 4 mm?ýFlexible 1/2x 4 ... 6 mm?ýRigid 1/2x 1.5 ... 2.5 mm?ýRigid 1/2x 2.5 ... 10 mm?ý |
| Tightening Torque: |
Auxiliary Circuit 1 ... 1.5 N?úmMain Circuit 2.5 ... 2.7 N?úm |
| Wire Stripping Length: |
Auxiliary Circuit 9 mmMain Circuit 12 mm |
| Recommended Screw Driver: |
Main Circuit Pozidriv 2 |
| Power Loss: |
at Rated Operating Conditions per Pole 2.1 ... 2.8 W |
| Suitable For: |
AF09AF12AF16AF26AF30AF38 |
| Standards: |
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1 |
| Environmental |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Ampere Rating UL/CSA: |
38 A |
| Contact Rating UL/CSA:45 mm
|
| Product Net Depth / Length: |
77 mm |
| Product Net Height: |
86 mm |
| Product Net Weight: |
0.27 kg |
| Technical |
|---|

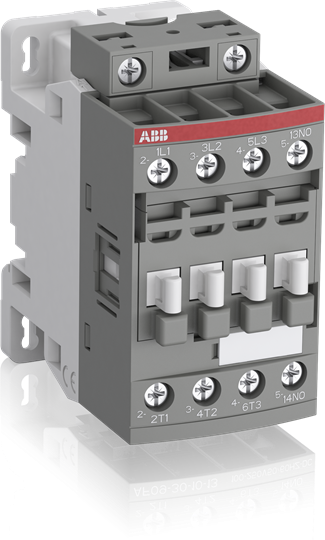

| Number of Main Contacts NO: |
3 |
| Number of Main Contacts NC: |
0 |
| Number of Auxiliary Contacts NO: |
1 |
| Number of Auxiliary Contacts NC: |
0 |
| Standards: |
IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N?ø14 |
| Rated Operational Voltage: |
Auxiliary Circuit 690 VMain Circuit 690 V |
| Rated Frequency (f): |
Auxiliary Circuit 50 / 60 HzMain Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): |
acc. to IEC 60947-4-1, Open Contactors q = 40 ?øC 35 Aacc. to IEC 60947-5-1, q = 40 ?øC 16 A |
| Rated Operational Current AC-1 (Ie): |
(690 V) 40 ?øC 25 A(690 V) 60 ?øC 25 A(690 V) 70 ?øC 22 A |
| Rated Operational Current AC-3 (Ie): |
(415 V) 60 ?øC 9 A(440 V) 60 ?øC 9 A(500 V) 60 ?øC 9.5 A(690 V) 60 ?øC 7 A(380 / 400 V) 60 ?øC 9 A(220 / 230 / 240 V) 60 ?øC 9 A |
| Rated Operational Current AC-3e (Ie): |
(415 V) 60 ?øC 9 A(440 V) 60 ?øC 9 A(500 V) 60 ?øC 9.5 A(690 V) 60 ?øC 7 A(380 / 400 V) 60 ?øC 9 A(220 / 230 / 240 V) 60 ?øC 9 A |
| Rated Operational Power AC-3 (Pe): |
(400 V) 4 kW(415 V) 4 kW(440 V) 4 kW(500 V) 5.5 kW(690 V) 5.5 kW(380 / 400 V) 4 kW(220 / 230 / 240 V) 2.2 kW |
| Rated Operational Power AC-3e (Pe): |
(415 V) 4 kW(440 V) 4 kW(500 V) 5.5 kW(690 V) 5.5 kW(380 / 400 V) 4 kW(220 / 230 / 240 V) 2.2 kW |
| Rated Operational Current AC-15 (Ie): |
(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| Rated Short-time Withstand Current Low Voltage (Icw): |
at 40 ?øC Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 0.1 s 140 Afor 1 s 100 A |
| Maximum Breaking Capacity: |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| Maximum Electrical Switching Frequency: |
(AC-1) 600 cycles per hour(AC-15) 1200 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 900 cycles per hour |
| Rated Operational Current DC-13 (Ie): |
(24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W |
| Rated Insulation Voltage (Ui): |
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): |
6 kV |
| Maximum Mechanical Switching Frequency: |
3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): |
50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V |
| Operate Time: |
Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| Mounting on DIN Rail: |
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting by Screws (not supplied): |
2 x M4 screws placed diagonally |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1/2x 0.75 ... 6 mm?ýFlexible with Insulated Ferrule 1x 0.75 ... 4 mm?ýFlexible with Insulated Ferrule 2x 0.75 ... 2.5 mm?ýRigid 1/2x 1 ... 6 mm?ý |
| Connecting Capacity Auxiliary Circuit: |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.75 ... 1.5 mm?ýFlexible with Insulated Ferrule 1x 0.75 ... 2.5 mm?ýRigid 1/2x 1 ... 2.5 mm?ý |
| Connecting Capacity Control Circuit: |
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 1x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.75 ... 1.5 mm?ýRigid 1/2x 1 ... 2.5 mm?ý |
| Wire Stripping Length: |
Auxiliary Circuit 10 mmControl Circuit 10 mmMain Circuit 10 mm |
| Degree of Protection: |
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type: |
Screw Terminals |
| Technical UL/CSA |
|---|
| NEMA Size: |
00 |
| Continuous Current Rating NEMA: |
9 A |
| Horsepower Rating NEMA: |
(115 V AC) Single Phase 1/3 Hp(200 V AC) Three Phase 1-1/2 Hp(230 V AC) Single Phase 1 Hp(230 V AC) Three Phase 1-1/2 Hp(460 V AC) Three Phase 2 Hp(575 V AC) Three Phase 2 Hp |
| General Use Rating UL/CSA: |
(600 V AC) 25 A |
| Horsepower Rating UL/CSA: |
(120 V AC) Single Phase 3/4 hp(200 ... 208 V AC) Three Phase 2 hp(220 ... 240 V AC) Three Phase 2 hp(240 V AC) Single Phase 1-1/2 hp(440 ... 480 V AC) Three Phase 5 hp(550 ... 600 V AC) Three Phase 7-1/2 hp |
| Tightening Torque UL/CSA: |
Auxiliary Circuit 11 in?úlbControl Circuit 11 in?úlbMain Circuit 13 in?úlb |
| Environmental |
|---|
| Ambient Air Temperature: |
Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 ?øCClose to Contactor without Thermal O/L Relay -40 ... 70 ?øCClose to Contactor for Storage -60 ... +80 ?øC |
| Climatic Withstand: |
Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible: |
Without Derating 3000 m |
| Resistance to Vibrations acc. to IEC 60068-2-6: |
5 ... 300 Hz 4 g closed position / 2 g open position |
| Resistance to Shock acc. to IEC 60068-2-27: |
Closed, Shock Direction: B1 25 gOpen, Shock Direction: B1 5 gShock Direction: A 30 gShock Direction: B2 15 gShock Direction: C1 25 gShock Direction: C2 25 g |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) |
|---|
| ABS Certificate: |
ABS_20-2060694-PDA |
| BV Certificate: |
BV_2634H24898B0 |
| CB Certificate: |
CB_SE-96551M1 |
| CCC Certificate: |
CCC_2010010304445624 |
| CQC Certificate: |
CQC2010010304445624CQC2020010304298240
|
| cUL Certificate: |
UL_20180227_E312527_7_1 |
| Declaration of Conformity - CCC: |
20209803040012532020980304001082
|
| Declaration of Conformity - CE: |
1SBD250000U1000 |
| Declaration of Conformity - UKCA: |
1SBD250031U1000 |
| EAC Certificate: |
EAC_RU_FRME77B03447 |
| Environmental Information: |
1SBD250147E10001SBC100222M0201
|
| GL Certificate: |
DNV-GL_TAE00001AF-3 |
| GOST Certificate: |
GOST_POCCFR.ME77.B07175.pdf |
| Instructions and Manuals: |
1SBC101027M6801 |
| KC Certificate: |
KC_HW02016-15004C |
| LR Certificate: |
LRS_1300087E1 |
| RINA Certificate: |
RINA_ELE240318XG |
| RMRS Certificate: |
RMRS_1802705280 |
| RoHS Information: |
1SBD250000U1000 |
| UL Certificate: |
UL_20140305-E312527_7_1 |
| UL Listing Card: |
E312527 |
| Container Information |
|---|
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
87 mm |
| Package Level 1 Depth / Length: |
79 mm |
| Package Level 1 Height: |
47 mm |
| Package Level 1 Gross Weight: |
0.27 kg |
| Package Level 1 EAN: |
3471523110038 |
| Package Level 2 Units: |
box 27 piece |
| Package Level 2 Width: |
250 mm |
| Package Level 2 Depth / Length: |
300 mm |
| Package Level 2 Height: |
315 mm |
| Package Level 2 Gross Weight: |
7.29 kg |
| Package Level 3 Units: |
1296 piece |
| Classifications |
|---|
| Object Classification Code: |
Q |
| ETIM 4: |
EC000066 - Magnet contactor, AC-switching |
| ETIM 5: |
EC000066 - Magnet contactor, AC-switching |
| ETIM 6: |
EC000066 - Power contactor, AC switching |
| ETIM 7: |
EC000066 - Power contactor, AC switching |
| ETIM 8: |
EC000066 - Power contactor, AC switching |
| eClass: |
V11.0 : 27371003 |
| UNSPSC: |
39121529 |
| E-Number (Finland): |
3706201 |
| E-Number (Sweden): |
3210009 |
