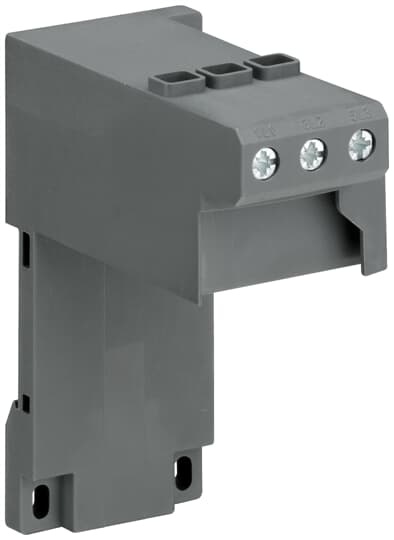

DB42 Single Mounting Kit for TF42
Specifications
| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85389099 |
| Popular Downloads |
|---|
| Data Sheet, Technical Information: |
1SBC100173C0201 |
| Instructions and Manuals: |
2CDC106025M6802 |
| Dimension Diagram: |
1SAZ700410F0001 |
| Dimensions |
|---|
| Product Net Width: |
50 mm |
| Product Net Height: |
102 mm |
| Product Net Depth / Length: |
108 mm |
| Product Net Weight: |
0.087 kg |
| Technical |
|---|
| Rated Operational Voltage: |
Main Circuit 690 V AC |
| Rated Operational Current (Ie): |
40 A |
| Rated Operational Current AC-3 (Ie): |
40 A |
| Rated Frequency (f): |
Main Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
Auxiliary Circuit 6 kVMain Circuit 6 kV |
| Rated Insulation Voltage (Ui): |
690 V |
| Number of Poles: |
3 |
| Degree of Protection: |
IP20 |
| Pollution Degree: |
3 |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1x 0.75 ... 10 mm?ýFlexible with Insulated Ferrule 1x 0.75 ... 10 mm?ýFlexible 1x 0.75 ... 10 mm?ýRigid 1x 0.75 ... 2.5 mm?ý |
| Tightening Torque: |
Main Circuit 1.5 ... 2.7 N?úm |
| Wire Stripping Length: |
Main Circuit 12 mm |
| Recommended Screw Driver: |
Pozidriv 2 |
| Mounting Position: |
1 ... 5 |
| Suitable For: |
TF42 |
| Standards: |
CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-4-1UL 508 |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Ampere Rating UL/CSA: |
40 A |
| Connecting Capacity Main Circuit UL/CSA: |
Flexible 1x 18-6 AWGStranded 1x 18-6 AWG |
| Tightening Torque UL/CSA: |
Main Circuit 13 ... 22 in?úlb |
| Environmental |
|---|
| Resistance to Shock acc. to IEC 60068-2-27: |
11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6: |
5g / 3 ... 150 Hz |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations (Document Number) |
|---|
| ABS Certificate: |
No Certificate Needed |
| Declaration of Conformity - CE: |
1SAD938513-01811SAD938505-0199
|
| Declaration of Conformity - UKCA: |
1SAD938501-11811SAD938501-1199
|
| DNV Certificate: |
No Certificate Needed |
| GL Certificate: |
No Certificate Needed |
| Instructions and Manuals: |
2CDC106025M6802 |
| LR Certificate: |
No Certificate Needed |
| RINA Certificate: |
No Certificate Needed |
| RMRS Certificate: |
No Certificate Needed |
| RoHS Information: |
1SAD938513-01811SAD938505-0199
|
| UL Certificate: |
E48139-20090126 |
| Container Information |
|---|
| Package Level 1 Units: |
1 piece |
| Package Level 1 Width: |
108 mm |
| Package Level 1 Height: |
50 mm |
| Package Level 1 Depth / Length: |
102 mm |
| Package Level 1 Gross Weight: |
0.12 kg |
| Package Level 1 EAN: |
4013614407826 |
| Package Level 2 Units: |
84 piece |
| Package Level 2 Width: |
405 mm |
| Package Level 2 Height: |
360 mm |
| Package Level 2 Depth / Length: |
380 mm |
| Package Level 2 Gross Weight: |
10.5 kg |
| Package Level 2 EAN: |
4013614480010 |
| Classifications |
|---|
| ETIM 4: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: |
EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass: |
V11.0 : 27371392 |
| UNSPSC: |
39122221 |
| IDEA Granular Category Code (IGCC): |
5219 >> Switch part or accessory |
| E-Number (Finland): |
3707472 |
| E-Number (Sweden): |
3210002 |
