ABB
Regular price
R 401.91 ZAR
Regular price
R 730.75 ZAR
Sale price
R 401.91 ZAR
Unit price
/
per
SKU:
Part Number:1SAZ401110R0001
Couldn't load pickup availability

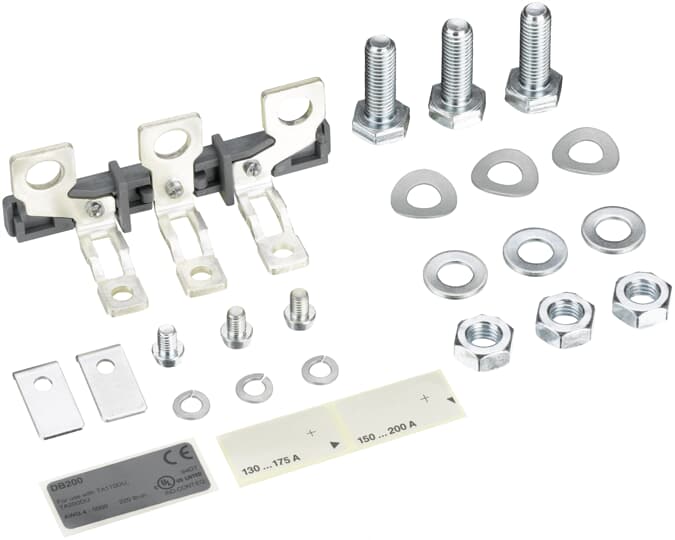

DB200 Single mounting kit
Specifications
| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85389099 |
| Popular Downloads |
|---|
| Data Sheet, Technical Information: |
1SBC100173C0201 |
| Instructions and Manuals: |
2CDC106089M6801 |
| Dimension Diagram: |
1SAZ400402F0001 |
| Dimensions |
|---|
| Product Net Width: |
105 mm |
| Product Net Height: |
43 mm |
| Product Net Depth / Length: |
40 mm |
| Product Net Weight: |
0.225 kg |
| Technical |
|---|
| Rated Operational Voltage: |
Main Circuit 690 V AC |
| Rated Frequency (f): |
Main Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
Main Circuit 6 kV |
| Rated Insulation Voltage (Ui): |
690 V |
| Number of Poles: |
3 |
| Pollution Degree: |
3 |
| Connecting Capacity Main Circuit: |
Hole Diameter > 10 mm?ýRigid or Flexible with Cable Lug 1x 25 ... 120 mm?ý |
| Tightening Torque: |
Main Circuit 25 N?úm |
| Suitable For: |
TA110DUTA200DU |
| Standards: |
CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-4-1UL 508 |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA: |
Flexible 1x 4-0000 AWG |
| Environmental |
|---|
| Ambient Air Temperature: |
Operation -25 ... +55 ?øCStorage -40 ... +70 ?øC |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations (Document Number) |
|---|
| ABS Certificate: |
No Certificate Needed |
| BV Certificate: |
NoCerNee |
| Declaration of Conformity - CE: |
1SAD938518-0043 |
| Declaration of Conformity - UKCA: |
1SAD938501-1043 |
| DNV Certificate: |
No Certificate Needed |
| GL Certificate: |
No Certificate Needed |
| Instructions and Manuals: |
2CDC106089M6801 |
| LR Certificate: |
No Certificate Needed |
| RINA Certificate: |
No Certificate Needed |
| RMRS Certificate: |
No Certificate Needed |
| RoHS Information: |
1SAD938518-0043 |
| UL Certificate: |
E48139-19960919 |
| Container Information |
|---|
| Package Level 1 Units: |
1 piece |
| Package Level 1 Width: |
92 mm |
| Package Level 1 Height: |
109 mm |
| Package Level 1 Depth / Length: |
61 mm |
| Package Level 1 Gross Weight: |
0.245 kg |
| Package Level 1 EAN: |
4013614237768 |
| Package Level 2 Units: |
24 piece |
| Package Level 2 Width: |
280 mm |
| Package Level 2 Height: |
210 mm |
| Package Level 2 Depth / Length: |
395 mm |
| Package Level 2 Gross Weight: |
8.786 kg |
| Package Level 2 EAN: |
4013614494185 |
| Classifications |
|---|
| Object Classification Code: |
Q |
| ETIM 4: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: |
EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass: |
V11.0 : 27371392 |
| E-Number (Finland): |
3850488 |
| E-Number (Sweden): |
3229006 |
