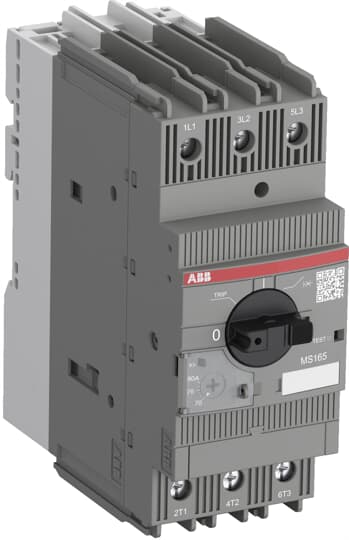

| Ordering |
|---|
| Popular Downloads |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85362010 |
| Dimensions |
|---|
| Data Sheet, Technical Information: |
2CDC131083D0201 |
| Instructions and Manuals: |
2CDC131081M6801 |
| Instructions and Manuals (Part 2): |
2CDC131060M0202 |
| Time-Current Characteristic Curve: |
1SAM400505F0005 |
| I?ýt Characteristic: |
1SAM400506F0001 |
| Cut-off Current Characteristic: |
1SAM400507F0001 |
| Dimension Diagram: |
1SAM400401F0001 |
| Technical |
|---|
| Product Net Width: |
55 mm |
| Product Net Height: |
142.65 mm |
| Product Net Depth / Length: |
122.1 mm |
| Product Net Weight: |
0.97 kg |
| Technical UL/CSA |
|---|
| Rated Service Short-Circuit Breaking Capacity (Ics): |
(230 V AC) 50 kA(250 V DC) 3 Poles in Series 100 kA(400 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 30 kA(690 V AC) 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): |
(230 V AC) 50 kA(250 V DC) 100 kA(400 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 30 kA(690 V AC) 10 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii): |
630 A |
| Setting Range: |
30 ... 42 A |
| Rated Operational Power AC-3 (Pe): |
(400 V) Three Phase 22 kW |
| Rated Operational Power AC-3e (Pe): |
(400 V) Three Phase 22 kW |
| Rated Operational Voltage: |
Main Circuit 690 V ACMain Circuit 250 V DC |
| Rated Operational Current (Ie): |
42 A |
| Rated Operational Current AC-3 (Ie): |
42 A |
| Rated Operational Current AC-3e (Ie): |
42 A |
| Rated Operational Current DC-5 (Ie): |
42 A |
| Rated Frequency (f): |
Main Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
Main Circuit 8 kV |
| Rated Insulation Voltage (Ui): |
1000 V |
| Power Loss: |
at Rated Operating Conditions per Pole 2.79 ... 5.47 W |
| Number of Poles: |
3 |
| Conventional Free-air Thermal Current (Ith): |
Main Circuit 42 A |
| Degree of Protection: |
Housing IP20Main Circuit Terminals IP10 |
| Pollution Degree: |
3 |
| Electrical Durability: |
25000 cycle |
| Mechanical Durability: |
50000 cycle |
| Terminal Type: |
Screw Terminals |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1/2x 1 ... 35 mm?ýFlexible with Insulated Ferrule 1/2x 1 ... 35 mm?ýFlexible 1/2x 1 ... 35 mm?ýRigid 1/2x 1 ... 4 mm?ýSolid 1/2x 1 ... 4 mm?ýStranded 1/2x 1 ... 50 mm?ý |
| Tightening Torque: |
Main Circuit 4 N?úm |
| Wire Stripping Length: |
Main Circuit 16 mm |
| Recommended Screw Driver: |
Pozidriv 2 |
| Mounting Position: |
1 ... 6 |
| Mounting on DIN Rail: |
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance: |
Electrical Conductive Board, Horizontal - Up to 1000 V 1.5 mmElectrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm |
| Actuator Type: |
Rotary Handle |
| Contact Position Indication: |
ON / OFF / TRIP |
| Standards: |
CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1UL 60947-4-1 |
| Environmental |
|---|
| Short-Circuit Current Rating (SCCR): |
Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kAManual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 30 kA |
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Ampere Rating UL/CSA: |
42 A |
| Horsepower Rating UL/CSA: |
(200 V AC) Three Phase 10 Hp(208 V AC) Three Phase 10 Hp(220 ... 240 V AC) Three Phase 15 Hp(440 ... 480 V AC) Three Phase 30 Hp(550 ... 600 V AC) Three Phase 40 Hp |
| Full Load Amps Motor Use: |
(200 V AC) Three Phase 32.2 A(208 V AC) Three Phase 30.8 A(220 ... 240 V AC) Three Phase 42 A(440 ... 480 V AC) Three Phase 40 A(550 ... 600 V AC) Three Phase 41 A |
| Locked Rotor Amps: |
(200 V AC) Three Phase 186.3 A(208 V AC) Three Phase 179 A(220 ... 240 V AC) Three Phase 232 A(440 ... 480 V AC) Three Phase 218 A(550 ... 600 V AC) Three Phase 232 A |
| General Use Rating UL/CSA: |
(600 V AC) 42 A |
| Connecting Capacity Main Circuit UL/CSA: |
Flexible 1/2x 16-0 AWGStranded 1/2x 16-0 AWG |
| Tightening Torque UL/CSA: |
Main Circuit 35 in?úlb |
| Certificates and Declarations (Document Number) |
|---|
| Ambient Air Temperature: |
|
| Ambient Air Temperature Compensation: |
|
| Maximum Operating Altitude Permissible: |
|
| Resistance to Shock acc. to IEC 60068-2-27: |
|
| Resistance to Vibrations acc. to IEC 60068-2-6: |
|
| RoHS Status: |
|
| Container Information |
|---|
| ABS Certificate: |
1SAA963002-0101 |
| ATEX Certificate: |
1SAA918001-3901 |
| BV Certificate: |
1SAA963002-0201 |
| CB Certificate: |
1SAA918002-2002 |
| CQC Certificate: |
CQC2015010307760141 |
| cUL Certificate: |
cUL_E345003\n cUL_E137861 |
| Cut-off Current Characteristic: |
1SAM400507F0001 |
| Declaration of Conformity - CCC: |
2020980307003042 |
| Declaration of Conformity - CE: |
1SAD938507-0190 |
| Declaration of Conformity - UKCA: |
1SAD938502-1190 |
| DNV GL Certificate: |
1SAA963002-0301 |
| EAC Certificate: |
1SAA963000-2701 |
| Environmental Information: |
1SAC200051H0009 |
| I?ýt Characteristic: |
1SAM400506F0001 |
| IECEx Certificate: |
1SAA918000-4001 |
| Instructions and Manuals: |
2CDC131081M6801 |
| Instructions and Manuals (Part 2): |
2CDC131060M0202 |
| KC Certificate: |
1SAA963001-1501 |
| LR Certificate: |
1SAA918001-0501 |
| RMRS Certificate: |
1SAA918000-0704 |
| RoHS Information: |
1SAD938505-0190 |
| Time-Current Characteristic Curve: |
1SAM400505F0005 |
| UL Certificate: |
UL_E137861\n UL_345003 |
| Classifications |
|---|
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
78 mm |
| Package Level 1 Depth / Length: |
155 mm |
| Package Level 1 Height: |
155 mm |
| Package Level 1 Gross Weight: |
1.1 kg |
| Package Level 1 EAN: |
4013614486098 |
| Package Level 2 Units: |
carton 12 piece |
| Package Level 2 Width: |
330 mm |
| Package Level 2 Depth / Length: |
400 mm |
| Package Level 2 Height: |
320 mm |
| Package Level 2 Gross Weight: |
13 kg |
| Package Level 2 EAN: |
4013614503955 |
