ABB
Regular price
R 510.53 ZAR
Regular price
R 928.23 ZAR
Sale price
R 510.53 ZAR
Unit price
/
per
SKU:
Part Number:1SAM401920R1003
Couldn't load pickup availability

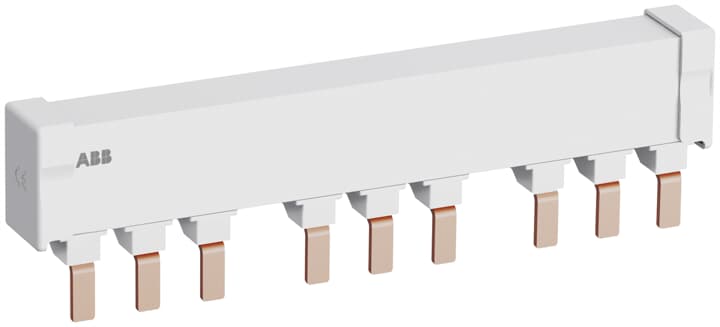

PS2-3-0-125 3-phase busbar for 3 MS165, Ie=125A
Specifications
| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85366990 |
| Popular Downloads |
|---|
| Instructions and Manuals: |
2CDC131082M6801 |
| Dimensions |
|---|
| Product Net Width: |
170 mm |
| Product Net Height: |
53 mm |
| Product Net Depth / Length: |
22 mm |
| Product Net Weight: |
0.162 kg |
| Technical |
|---|
| Rated Operational Voltage: |
690 V AC |
| Rated Operational Current (Ie): |
125 A |
| Rated Impulse Withstand Voltage (Uimp): |
8 kV |
| Rated Short-time Withstand Current Low Voltage (Icw): |
100 kA |
| Number of Mountable Devices: |
3 |
| Number of Lateral Auxiliary Contacts: |
0 |
| Number of Phases: |
3 |
| Number of Poles: |
9 |
| Degree of Protection: |
IP20 |
| Pollution Degree: |
3 |
| Connection Type: |
Pin |
| Standards: |
IEC/EN 60947-4-1 |
| Product Name: |
Busbar |
| Suitable For: |
MS165MO165 |
| Accessory Group: |
Electrical |
| Accessory Type: |
3-Phase Busbar |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Ampere Rating UL/CSA: |
125 A |
| Environmental |
|---|
| Ambient Air Temperature: |
Operation -25 ... +40 ?øCStorage -50 ... +80 ?øC |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) |
|---|
| Declaration of Conformity - CE: |
1SAD938504-0193 |
| Declaration of Conformity - UKCA: |
1SAD938500-1193 |
| Instructions and Manuals: |
2CDC131082M6801 |
| RoHS Information: |
1SAD938502-0193 |
| Container Information |
|---|
| Package Level 1 Width: |
80 mm |
| Package Level 1 Depth / Length: |
320 mm |
| Package Level 1 Height: |
76 mm |
| Package Level 1 Gross Weight: |
1.676 kg |
| Package Level 1 EAN: |
4013614502200 |
| Package Level 1 Units: |
10 piece |
| Classifications |
|---|
| Object Classification Code: |
W |
| ETIM 5: |
EC000215 - Phase busbar |
| ETIM 6: |
EC000215 - Phase busbar |
| ETIM 7: |
EC000215 - Phase busbar |
| ETIM 8: |
EC000215 - Phase busbar |
| eClass: |
V11.0 : 27371306 |
| UNSPSC: |
39121117 |
| IDEA Granular Category Code (IGCC): |
4378 >> Phase busbar |
| E-Number (Sweden): |
3110212 |
