ABB
Regular price
R 131.86 ZAR
Regular price
R 239.74 ZAR
Sale price
R 131.86 ZAR
Unit price
/
per
SKU:
Part Number:1SAM401902R1002
Couldn't load pickup availability

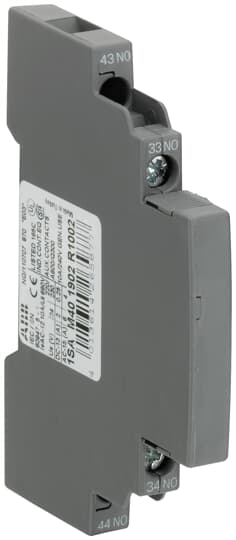

HKS4-20 Auxiliary contact 2NO
Specifications
| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85365080 |
| Popular Downloads |
|---|
| Data Sheet, Technical Information: |
1SBC100173C0201 |
| Dimensions |
|---|
| Product Net Width: |
9 mm |
| Product Net Height: |
89 mm |
| Product Net Depth / Length: |
69 mm |
| Product Net Weight: |
0.045 kg |
| Technical |
|---|
| Rated Operational Voltage: |
690 VMain Circuit 690 V |
| Rated Operational Current AC-15 (Ie): |
(24 V) 6 A(230 V) 4 A(400 V) 3 A |
| Rated Operational Current DC-13 (Ie): |
(24 V) 1 A(110 V) 0.5 A(220 V) 25 A |
| Rated Frequency (f): |
Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DC |
| Rated Insulation Voltage (Ui): |
690 V |
| Degree of Protection: |
IP20 |
| Connecting Capacity Auxiliary Circuit: |
Flexible with Ferrule 1/2x 0.5 ... 1.5 mm²Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible 1/2x 0.5 ... 1.5 mm²Flexible 1/2x 0.75 ... 1 mm²Rigid 1/2x 0.5 ... 1.5 mm²Rigid 1/2x 0.75 ... 2.5 mm² |
| Tightening Torque: |
Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length: |
Auxiliary Circuit 10 mm |
| Recommended Screw Driver: |
Pozidriv 2 |
| Number of Auxiliary Contacts NO: |
2 |
| Number of Auxiliary Contacts NC: |
0 |
| Number of Auxiliary Contacts CO (SPDT): |
0 |
| Conventional Free-air Thermal Current (Ith): |
10 A |
| Standards: |
CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1IEC/EN 60947-5-1UL 508 |
| Product Name: |
Auxiliary Contact |
| Short-Circuit Protective Devices: |
Auxiliary Circuit - gG Type Fuses 10 A |
| Suitable For: |
MS450MS451MO450MS495MS496MS497MO495MO496 |
| Suitable for Product Class: |
Manual Motor Starter |
| Accessory Group: |
Electrical |
| Accessory Type: |
Auxiliary Contact |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Auxiliary Circuit 600 V AC/DC |
| Connecting Capacity Auxiliary Circuit UL/CSA: |
Flexible 1/2x 18-14 AWGStranded 1/2x 18-14 AWG |
| Tightening Torque UL/CSA: |
Auxiliary Circuit 7 ... 10.3 in·lb |
| Contact Rating UL/CSA: |
B600Q600 |
| Environmental |
|---|
| Ambient Air Temperature: |
Operation -25 ... +70 °CStorage -50 ... +80 °C |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) |
|---|
| CQC Certificate: |
CQC2014010304719138 |
| Declaration of Conformity - CCC: |
2020980305001307 |
| Declaration of Conformity - CE: |
1SAD938506-00501SAD938505-0051
|
| Declaration of Conformity - UKCA: |
1SAD938500-10501SAD938500-1051
|
| DNV Certificate: |
1SAA937000-0301 |
| RoHS Information: |
1SAD938506-00501SAD938505-0051
|
| UL Certificate: |
UL_E149922 |
| Container Information |
|---|
| Package Level 1 Width: |
37 mm |
| Package Level 1 Depth / Length: |
84 mm |
| Package Level 1 Height: |
100 mm |
| Package Level 1 Gross Weight: |
0.1 kg |
| Package Level 1 Units: |
2 piece |
| Classifications |
|---|
| ETIM 4: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: |
EC000041 - Auxiliary contact block |
| ETIM 6: |
EC000041 - Auxiliary contact block |
| ETIM 7: |
EC000041 - Auxiliary contact block |
| ETIM 8: |
EC000041 - Auxiliary contact block |
| eClass: |
V11.0 : 27371302 |
| UNSPSC: |
39121522 |
| IDEA Granular Category Code (IGCC): |
4742 >> Electrical contacts |
| E-Number (Finland): |
3707906 |
