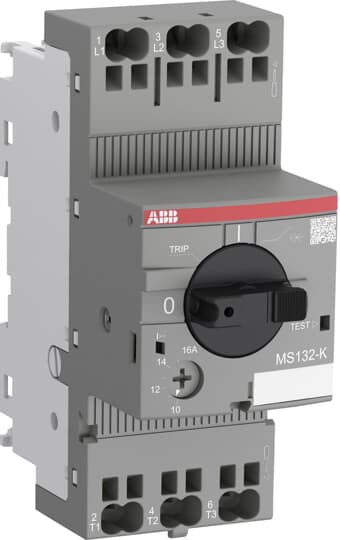

| Ordering |
|---|
| Popular Downloads |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85362010 |
| Dimensions |
|---|
| Data Sheet, Technical Information: |
1SBC100212C0203 |
| Instructions and Manuals: |
2CDC131120M6801 |
| Instructions and Manuals (Part 2): |
2CDC131060M0202 |
| Time-Current Characteristic Curve: |
1SAM300505F0014 |
| I?ýt Characteristic: |
1SAM300507F0001 1SAM300507F0003 |
| Cut-off Current Characteristic: |
1SAM300508F0001 1SAM300508F0003 |
| Installation Video: |
9AKK108466A6074 9AKK108466A6068 |
| Marketing Video: |
9AKK107991A4712 2CDC131153V0201 |
| Technical |
|---|
| Product Net Width: |
45 mm |
| Product Net Height: |
112 mm |
| Product Net Depth / Length: |
87 mm |
| Product Net Weight: |
0.316 kg |
| Technical UL/CSA |
|---|
| Rated Service Short-Circuit Breaking Capacity (Ics): |
(230 V AC) 50 kA(250 V DC) 3 Poles in Series 10 kA(400 V AC) 50 kA(440 V AC) 30 kA(500 V AC) 10 kA(690 V AC) 3 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): |
(230 V AC) 50 kA(400 V AC) 50 kA(440 V AC) 30 kA(500 V AC) 10 kA(690 V AC) 3 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii): |
375 A |
| Setting Range: |
20 ... 25 A |
| Rated Operational Power AC-3 (Pe): |
(400 V) Three Phase 11 kW |
| Rated Operational Power AC-3e (Pe): |
(400 V) Three Phase 11 kW |
| Rated Operational Voltage: |
Main Circuit 690 V ACMain Circuit 250 V DC |
| Rated Operational Current (Ie): |
25 A |
| Rated Operational Current AC-3 (Ie): |
25 A |
| Rated Operational Current AC-3e (Ie): |
25 A |
| Rated Operational Current DC-5 (Ie): |
25 A |
| Rated Frequency (f): |
Main Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
Main Circuit 6 kV |
| Rated Insulation Voltage (Ui): |
690 V |
| Power Loss: |
at Rated Operating Conditions per Pole 1.8 ... 2.8 W |
| Number of Poles: |
3 |
| Conventional Free-air Thermal Current (Ith): |
Main Circuit 25 A |
| Degree of Protection: |
Housing IP20Main Circuit Terminals IP20 |
| Pollution Degree: |
3 |
| Electrical Durability: |
50000 cycle |
| Mechanical Durability: |
100000 cycle |
| Terminal Type: |
Push-in Spring Terminals |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1/2x 0.5 ... 4 mm?ýFlexible with Insulated Ferrule 1x 0.5 ... 4 mm?ýFlexible with Insulated Ferrule 2x 0.5 ... 2.5 mm?ýFlexible 1/2x 0.75 ... 4 mm?ýSolid 1/2x 1 ... 2.5 mm?ýStranded 1/2x 1 ... 6 mm?ý |
| Wire Stripping Length: |
Main Circuit 12 mm |
| Recommended Screw Driver: |
Pozidriv 2 |
| Mounting Position: |
1 ... 6 |
| Mounting on DIN Rail: |
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance: |
Electrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm |
| Actuator Type: |
Rotary Handle |
| Contact Position Indication: |
ON / OFF / TRIP |
| Standards: |
IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1UL 60947-1UL 60947-4-1 |
| Remarks: |
UL508 Self-Protected Combination Motor Controller (Type E) in combination with terminal spacer TS1-M3-K |
| Environmental |
|---|
| Short-Circuit Current Rating (SCCR): |
Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 18 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA |
| Maximum Operating Voltage UL/CSA: |
Auxiliary Circuit 250 V AC/DCMain Circuit 600 V AC |
| Ampere Rating UL/CSA: |
25 A |
| Horsepower Rating UL/CSA: |
(200 V AC) Three Phase 5 Hp(208 V AC) Three Phase 7.5 Hp(220 ... 240 V AC) Three Phase 7.5 Hp(440 ... 480 V AC) Three Phase 15 Hp(550 ... 600 V AC) Three Phase 20 Hp |
| Full Load Amps Motor Use: |
(200 V AC) Three Phase 17.5 A(208 V AC) Three Phase 24.2 A(220 ... 240 V AC) Three Phase 22 A(440 ... 480 V AC) Three Phase 21 A(550 ... 600 V AC) Three Phase 22 A |
| Locked Rotor Amps: |
(200 V AC) Three Phase 105.8 A(208 V AC) Three Phase 140 A(220 ... 240 V AC) Three Phase 127 A(440 ... 480 V AC) Three Phase 116 A(550 ... 600 V AC) Three Phase 116 A |
| General Use Rating UL/CSA: |
(600 V AC) 25 A |
| Connecting Capacity Main Circuit UL/CSA: |
Stranded 1/2x 18-10 AWGStranded 1x 8 AWG |
| Certificates and Declarations (Document Number) |
|---|
| Ambient Air Temperature: |
|
| Ambient Air Temperature Compensation: |
|
| Maximum Operating Altitude Permissible: |
|
| Resistance to Shock acc. to IEC 60068-2-27: |
|
| Resistance to Vibrations acc. to IEC 60068-2-6: |
|
| RoHS Status: |
|
| Container Information |
|---|
| ABS Certificate: |
1SAA963001-0101 |
| ATEX Certificate: |
1SAA963000-3902 |
| CB Certificate: |
1SAA963002-2002 |
| CQC Certificate: |
CQC2017010307034621 |
| cUL Certificate: |
cUL_E137861 |
| Cut-off Current Characteristic: |
1SAM300508F0001 1SAM300508F0003 |
| Declaration of Conformity - CCC: |
2020980307004600 |
| Declaration of Conformity - CE: |
1SAD938519-0125 |
| Declaration of Conformity - UKCA: |
1SAD938503-1125 |
| EAC Certificate: |
1SAA963004-2701 |
| Environmental Information: |
1SAC200049H0009 |
| I?ýt Characteristic: |
1SAM300507F0001 1SAM300507F0003 |
| IECEx Certificate: |
1SAA963000-4001 |
| Instructions and Manuals: |
2CDC131120M6801 |
| Instructions and Manuals (Part 2): |
2CDC131060M0202 |
| KC Certificate: |
1SAA963002-1502 |
| RINA Certificate: |
1SAA963002-0802 |
| RoHS Information: |
1SAD938516-0125 |
| Time-Current Characteristic Curve: |
1SAM300505F0014 |
| Classifications |
|---|
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
50 mm |
| Package Level 1 Depth / Length: |
117 mm |
| Package Level 1 Height: |
82 mm |
| Package Level 1 Gross Weight: |
0.342 kg |
| Package Level 1 EAN: |
4013614400445 |
| Package Level 2 Units: |
carton 28 piece |
| Package Level 2 Width: |
280 mm |
| Package Level 2 Depth / Length: |
395 mm |
| Package Level 2 Height: |
210 mm |
| Package Level 2 Gross Weight: |
14.026 kg |
| Package Level 2 EAN: |
4013614522864 |
