ABB
Regular price
R 196.29 ZAR
Regular price
R 356.89 ZAR
Sale price
R 196.29 ZAR
Unit price
/
per
SKU:
Part Number:1SAM201906R1125
Couldn't load pickup availability

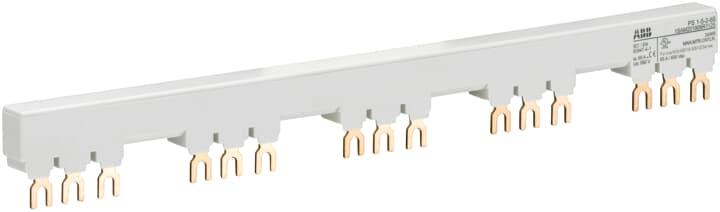

PS1-5-2-65 3-phase busbar for 5 MS116 / MS132 with 2 HK/SK, Ie=65A
Specifications
| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85369010 |
| Popular Downloads |
|---|
| Data Sheet, Technical Information: |
1SBC100192C02-- |
| Instructions and Manuals: |
2CDC131011M6802 2CDC131034M6801 2CDC131022M6802 |
| Dimension Diagram: |
1SAM200450F0012 |
| Dimensions |
|---|
| Product Net Width: |
293.5 mm |
| Product Net Height: |
32.3 mm |
| Product Net Depth / Length: |
13 mm |
| Product Net Weight: |
0.122 kg |
| Technical |
|---|
| Rated Operational Voltage: |
690 V AC250 V DC |
| Rated Operational Current (Ie): |
65 A |
| Rated Impulse Withstand Voltage (Uimp): |
6 kV |
| Rated Short-time Withstand Current Low Voltage (Icw): |
100 kA |
| Number of Mountable Devices: |
5 |
| Number of Lateral Auxiliary Contacts: |
2 |
| Number of Phases: |
3 |
| Degree of Protection: |
IP20 |
| Pollution Degree: |
3 |
| Connection Type: |
Fork |
| Standards: |
IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1 |
| Product Name: |
Busbar |
| Suitable For: |
MS116MS132 |
| Suitable for Product Class: |
Manual Motor Starter |
| Accessory Group: |
Electrical |
| Accessory Type: |
3-Phase Busbar |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Ampere Rating UL/CSA: |
65 A |
| Environmental |
|---|
| Ambient Air Temperature: |
Operation -25 ... +70 ?øCStorage -50 ... +80 ?øC |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) |
|---|
| cUL Certificate: |
1SAA963001-1701 |
| Declaration of Conformity - CE: |
1SAD938515-00561SAD938508-01971SAD938519-01251SAD938510-01881SAD938523-00601SAD938510-0183
|
| Declaration of Conformity - UKCA: |
1SAD938502-10561SAD938502-10601SAD938503-11251SAD938503-11881SAD938503-1197
|
| Instructions and Manuals: |
2CDC131011M68022CDC131034M68012CDC131022M6802
|
| RoHS Information: |
1SAD938511-0056 |
| UL Certificate: |
1SAA963001-1602 |
| Container Information |
|---|
| Package Level 1 Width: |
80 mm |
| Package Level 1 Depth / Length: |
297 mm |
| Package Level 1 Height: |
46 mm |
| Package Level 1 Gross Weight: |
1.27 kg |
| Package Level 1 EAN: |
4013614488177 |
| Package Level 1 Units: |
box 10 piece |
| Classifications |
|---|
| Object Classification Code: |
W |
| ETIM 4: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: |
EC000215 - Phase busbar |
| ETIM 6: |
EC000215 - Phase busbar |
| ETIM 7: |
EC000215 - Phase busbar |
| ETIM 8: |
EC000215 - Phase busbar |
| eClass: |
V11.0 : 27371306 |
| UNSPSC: |
39121117 |
| IDEA Granular Category Code (IGCC): |
4378 >> Phase busbar |
| E-Number (Finland): |
3705936 |
| E-Number (Sweden): |
3111686 |
