ABB
Regular price
R 135.20 ZAR
Regular price
R 245.81 ZAR
Sale price
R 135.20 ZAR
Unit price
/
per
SKU:
Part Number:1SAM201906R1103
Couldn't load pickup availability

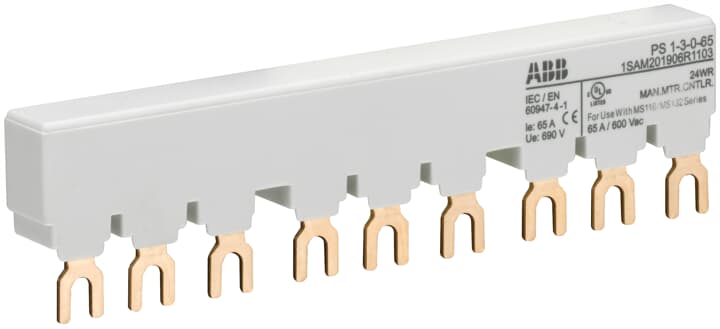

PS1-3-0-65 3-phase busbar for 3 MS116 / MS132, Ie=65A
Specifications
| Ordering |
|---|
| Popular Downloads |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85369010 |
| Dimensions |
|---|
| Data Sheet, Technical Information: |
1SBC100192C02-- |
| Instructions and Manuals: |
2CDC131011M6802 2CDC131034M6801 2CDC131022M6802 |
| Dimension Diagram: |
1SAM200450F0002 |
| Technical |
|---|
| Product Net Width: |
131.5 mm |
| Product Net Height: |
32.3 mm |
| Product Net Depth / Length: |
13 mm |
| Product Net Weight: |
0.055 kg |
| Technical UL/CSA |
|---|
| Rated Operational Voltage: |
690 V AC250 V DC |
| Rated Operational Current (Ie): |
65 A |
| Rated Impulse Withstand Voltage (Uimp): |
6 kV |
| Rated Short-time Withstand Current Low Voltage (Icw): |
100 kA |
| Number of Mountable Devices: |
3 |
| Number of Lateral Auxiliary Contacts: |
0 |
| Number of Phases: |
3 |
| Number of Poles: |
9 |
| Degree of Protection: |
IP20 |
| Pollution Degree: |
3 |
| Connection Type: |
Fork |
| Standards: |
IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1 |
| Product Name: |
Busbar |
| Suitable For: |
MS116MS132 |
| Suitable for Product Class: |
Manual Motor Starter |
| Accessory Group: |
Electrical |
| Accessory Type: |
3-Phase Busbar |
| Environmental |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Ampere Rating UL/CSA: |
65 A |
| Certificates and Declarations (Document Number) |
|---|
| Ambient Air Temperature: |
|
| RoHS Status: |
|
| Container Information |
|---|
| cUL Certificate: |
1SAA963001-1701 |
| Declaration of Conformity - CE: |
1SAD938515-0056 1SAD938508-0197 1SAD938519-0125 1SAD938510-0188 1SAD938523-0060 1SAD938510-0183 |
| Declaration of Conformity - UKCA: |
1SAD938502-1056 1SAD938502-1060 1SAD938503-1125 1SAD938503-1188 1SAD938503-1197 |
| Instructions and Manuals: |
2CDC131011M6802 2CDC131034M6801 2CDC131022M6802 |
| RoHS Information: |
1SAD938511-0056 |
| UL Certificate: |
1SAA963001-1602 |
| Classifications |
|---|
| Package Level 1 Width: |
80 mm |
| Package Level 1 Depth / Length: |
181 mm |
| Package Level 1 Height: |
46 mm |
| Package Level 1 Gross Weight: |
0.588 kg |
| Package Level 1 EAN: |
4013614488078 |
| Package Level 1 Units: |
box 10 piece |
