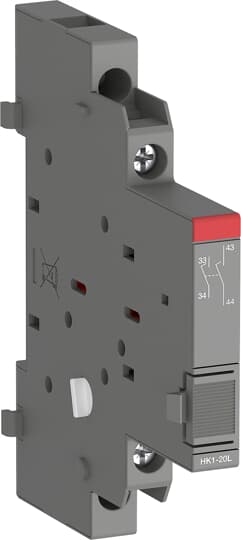

HK1-20L Aux.-cont. w. 2 lead contacts 2 NO
Specifications
| Ordering |
|---|
| Minimum Order Quantity: |
2 piece |
| Customs Tariff Number: |
85365080 |
| Popular Downloads |
|---|
| Data Sheet, Technical Information: |
1SBC100192C02-- |
| Instructions and Manuals: |
2CDC131011M6802 2CDC131034M6801 2CDC131022M6802 |
| Dimensions |
|---|
| Product Net Width: |
9 mm |
| Product Net Height: |
90 mm |
| Product Net Depth / Length: |
78.5 mm |
| Product Net Weight: |
0.035 kg |
| Technical |
|---|
| Terminal Type: |
Screw Terminals |
| Rated Operational Voltage: |
690 V AC600 V DCMain Circuit 690 V |
| Rated Operational Current AC-15 (Ie): |
(24 V) 6 A(240 V) 4 A(690 V) 1 A(380 / 400 V) 3 A |
| Rated Operational Current DC-13 (Ie): |
(24 V) 2 A(125 V) 0.55 A(250 V) 0.27 A(440 V) 0.15 A(600 V) 0.15 A |
| Rated Impulse Withstand Voltage (Uimp): |
Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui): |
690 V |
| Degree of Protection: |
IP20 |
| Electrical Durability: |
100000 cycle |
| Mechanical Durability: |
100000 cycle |
| Connecting Capacity Auxiliary Circuit: |
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm?ýFlexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm?ýFlexible 1/2x 0.75 ... 1.5 mm?ýRigid 1/2x 1 ... 1.5 mm?ý |
| Tightening Torque: |
Auxiliary Circuit 0.8 ... 1.2 N?úm |
| Wire Stripping Length: |
Auxiliary Circuit 8 mm |
| Recommended Screw Driver: |
M3Pozidriv 2 |
| Number of Auxiliary Contacts NO: |
2 |
| Number of Auxiliary Contacts NC: |
0 |
| Number of Auxiliary Contacts CO (SPDT): |
0 |
| Standards: |
CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-5-1UL 508UL 60947-1UL 60947-5-1 |
| Product Name: |
Auxiliary Contact |
| Suitable For: |
MS116MS132MO132 |
| Suitable for Product Class: |
Manual Motor Starter |
| Accessory Group: |
Electrical |
| Accessory Type: |
Auxiliary Contact |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Connecting Capacity Auxiliary Circuit UL/CSA: |
Flexible 1/2x 16-14 AWGStranded 1/2x 16-14 AWG |
| Tightening Torque UL/CSA: |
Auxiliary Circuit 7 in?úlb |
| Contact Rating UL/CSA: |
B600Q600 |
| Environmental |
|---|
| Ambient Air Temperature: |
Operation -25 ... +60 ?øC |
| Resistance to Shock acc. to IEC 60068-2-27: |
11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6: |
5g / 3 ... 150 Hz |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) |
|---|
| ABS Certificate: |
1SAA963001-0101 |
| BV Certificate: |
1SAA963000-0202 |
| CB Certificate: |
1SAA963004-2002 |
| CQC Certificate: |
CQC2017010304032778 |
| cUL Certificate: |
cUL_E137861 |
| Declaration of Conformity - CCC: |
2020980304001252 |
| Declaration of Conformity - CE: |
1SAD938508-01971SAD938510-01881SAD938519-01251SAD938523-00601SAD938504-01961SAD938507-01901SAD938504-01981SAD938506-01911SAD938510-0183
|
| Declaration of Conformity - UKCA: |
1SAD938502-10601SAD938503-11251SAD938503-11881SAD938503-1197
|
| DNV GL Certificate: |
1SAA963001-0304 |
| Instructions and Manuals: |
2CDC131011M68022CDC131034M68012CDC131022M6802
|
| LR Certificate: |
1SAA963001-05021SAA963001-05011SAA963000-05051SAA918001-0501
|
| RINA Certificate: |
1SAA963002-0802 |
| RoHS Information: |
1SAD938516-0125 |
| UL Certificate: |
UL_E137861 |
| Container Information |
|---|
| Package Level 1 Width: |
25 mm |
| Package Level 1 Depth / Length: |
80 mm |
| Package Level 1 Height: |
93 mm |
| Package Level 1 Gross Weight: |
0.08 kg |
| Package Level 1 EAN: |
4013614481482 |
| Package Level 1 Units: |
box 2 piece |
| Package Level 2 Width: |
280 mm |
| Package Level 2 Depth / Length: |
395 mm |
| Package Level 2 Height: |
210 mm |
| Package Level 2 Gross Weight: |
6.775 kg |
| Package Level 2 EAN: |
4013614522802 |
| Package Level 2 Units: |
carton 160 piece |
| Classifications |
|---|
| Object Classification Code: |
Q |
| ETIM 4: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: |
EC000041 - Auxiliary contact block |
| ETIM 6: |
EC000041 - Auxiliary contact block |
| ETIM 7: |
EC000041 - Auxiliary contact block |
| ETIM 8: |
EC000041 - Auxiliary contact block |
| eClass: |
V11.0 : 27371302 |
| UNSPSC: |
39121522 |
| IDEA Granular Category Code (IGCC): |
4742 >> Electrical contacts |
