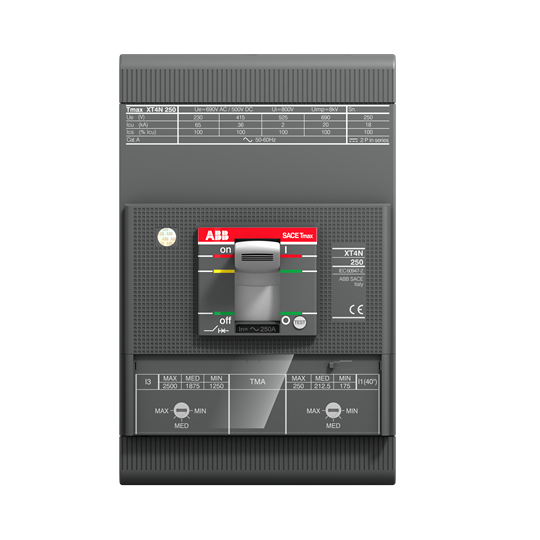

C.BREAKER TMAX XT4H 250 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 200 A I3=1000...2000 A
Specifications
Ordering
EAN:
8015644696474
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090
Order Code US and Canada:
XT4HE3200MFF000XXX
Dimensions
Product Net Width:
105 mm
Product Net Height:
160 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
2.05 kg
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
145 mm
Package Level 1 Height:
210 mm
Package Level 1 Depth / Length:
168 mm
Package Level 1 Gross Weight:
2.5 kg
Package Level 1 EAN:
8015644696474
Environmental
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Circuit Breaker Type to be Associated:
Motor Protection
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour8000 cycle
Mechanical Durability:
Nr. Operations 240 cycles per hourNr. Operations 25000 cycle
Number of Poles:
3
Opening Time:
CB with SOR 15 msCB with UVR 15 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 11.88 W
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
CB
Rated Current (In):
200 A
Rated Frequency (f):
50 / 60 Hz
Rated Voltage (Ur):
690 V
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
1000Æ’2000 A
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 100 kA(230 V AC) 100 kA(240 V AC) 100 kA(380 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(525 V AC) 45 kA(690 V AC) 15 kA(250 V DC) 2 Poles in Series 70 kA(500 V DC) 2 Poles in Series 70 kA(500 V DC) 3 Poles in Series 70 kA
(220 V AC) 100 kA(230 V AC) 100 kA(240 V AC) 100 kA(380 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(525 V AC) 45 kA(690 V AC) 15 kA(250 V DC) 2 Poles in Series 70 kA(500 V DC) 2 Poles in Series 70 kA(500 V DC) 3 Poles in Series 70 kA
