ABB
Regular price
R 1,600.48 ZAR
Regular price
R 2,909.97 ZAR
Sale price
R 1,600.48 ZAR
Unit price
/
per
SKU:
Part Number:1SDA068208R1
Couldn't load pickup availability

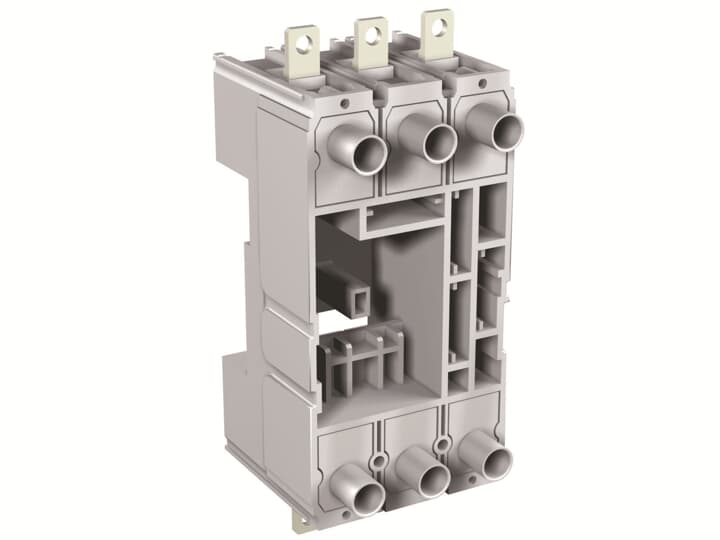

SWITCH-DISCONNECTOR TMAX XT1D 160 FIXED THREE-POLE WITH FRONT TERMINALS
Specifications
| Ordering |
|---|
| EAN: |
8015644021047 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85362090 |
| Order Code US and Canada: |
XT1DE3160DFF000XXX |
| Dimensions |
|---|
| Product Net Width: |
76.2 mm |
| Product Net Height: |
130 mm |
| Product Net Depth / Length: |
70 mm |
| Product Net Weight: |
1.028 kg |
| Container Information |
|---|
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
128 mm |
| Package Level 1 Height: |
135 mm |
| Package Level 1 Depth / Length: |
143 mm |
| Package Level 1 Gross Weight: |
1.082 kg |
| Package Level 1 EAN: |
8015644021047 |
| Environmental |
|---|
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information |
|---|
| Electrical Durability: |
120 cycles per hour8000 cycle |
| Mechanical Durability: |
Nr. Operations 240 cycles per hourNr. Operations 25000 cycle |
| Number of Poles: |
3 |
| Opening Time: |
CB with SOR 15 msCB with UVR 15 ms |
| Order Multiple: |
1 piece |
| Product Main Type: |
SACE Tmax XT |
| Product Name: |
Lasttrennschalter |
| Product Type: |
SD |
| Rated Frequency (f): |
50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
8 kV |
| Rated Insulation Voltage (Ui): |
800 V |
| Rated Operational Voltage: |
690 V AC500 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw): |
for 1 s 2 kA |
| Rated Uninterrupted Current (Iu): |
160 A |
| RoHS Date: |
NA |
| Short-Circuit Performance Level: |
D |
| Standards: |
IEC |
| Sub-type: |
XT1 |
| Terminal Connection Type: |
Fixed Circuit-Breakers |
| Version: |
F |
| Certificates and Declarations (Document Number) |
|---|
| Data Sheet, Technical Information: |
1SDC210100D02061SDC210099D0206
|
| Declaration of Conformity - CE: |
9AKK106713A5532 |
| Environmental Information: |
9AKK107991A8215 |
| Instructions and Manuals: |
1SDH000719R0001 |
| REACH Declaration: |
9AKK108466A1425 |
| RoHS Information: |
9AKK108466A1424 |
| Classifications |
|---|
| ETIM 4: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: |
EC000216 - Switch disconnector |
| ETIM 7: |
EC000216 - Switch disconnector |
| ETIM 8: |
EC000216 - Switch disconnector |
| Object Classification Code: |
Q |
| UNSPSC: |
39120000 |
| WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
