ABB
Regular price
R 1,128.02 ZAR
Regular price
R 2,050.95 ZAR
Sale price
R 1,128.02 ZAR
Unit price
/
per
SKU:
Part Number:1SDA068196R1
Couldn't load pickup availability

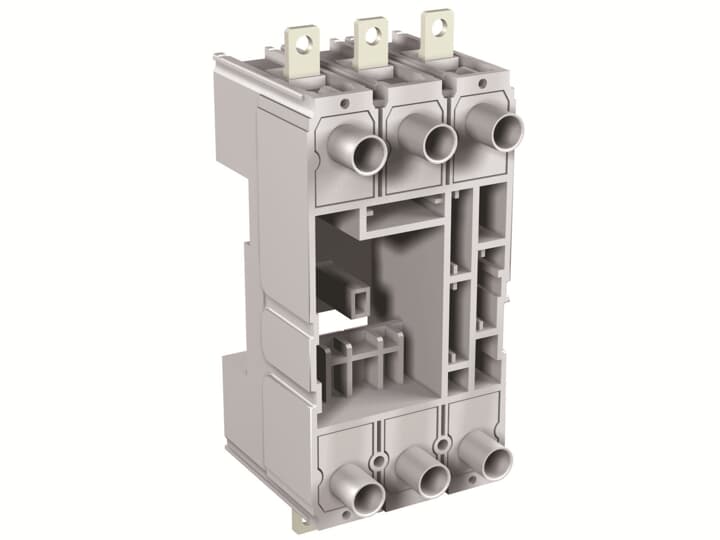

FIXED PART PLUG-IN FOR C.BREAKER TMAX THREE-POLE WITH EXTENDED FRONT TERMINALS XT4
Specifications
| Ordering |
|---|
| E-Number (Finland): |
3641064 |
| E-Number (Sweden): |
3182047 |
| EAN: |
8015644020927 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85389099 |
| Order Code US and Canada: |
KXT4PFPEF-3 |
| Dimensions |
|---|
| Product Net Weight: |
1.04 kg |
| Container Information |
|---|
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
145 mm |
| Package Level 1 Height: |
155 mm |
| Package Level 1 Depth / Length: |
295 mm |
| Package Level 1 Gross Weight: |
1.19 kg |
| Package Level 1 EAN: |
8015644020927 |
| Environmental |
|---|
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information |
|---|
| Configuration Type: |
Loose or configurable |
| Number of Poles: |
3 |
| Order Multiple: |
1 piece |
| Product Main Type: |
Accessories for Tmax XT |
| Product Name: |
Accessory |
| Product Type: |
FP |
| Rated Frequency (f): |
50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
8 kV |
| Rated Insulation Voltage (Ui): |
1000 V |
| Rated Operational Voltage: |
690 V AC500 V DC |
| Rated Uninterrupted Current (Iu): |
250 A |
| Standards: |
IEC, UL |
| Sub-type: |
XT4 |
| Suitable For: |
XT4 |
| Suitable for Product Class: |
SACE Tmax XT |
| Terminal Connection Type: |
Plug-In Circuit-BreakersFront Extended |
| Version: |
P |
| Certificates and Declarations (Document Number) |
|---|
| Data Sheet, Technical Information: |
1SDC210100D02061SDC210099D0206
|
| Declaration of Conformity - CE: |
Refer to the EU Declaration of the relative Circuit Breaker |
| Environmental Information: |
9AKK107991A8215 |
| Instructions and Manuals: |
1SDH000722R0005 |
| REACH Declaration: |
9AKK108466A1425 |
| RoHS Information: |
9AKK108466A1424 |
| Classifications |
|---|
| ETIM 6: |
EC002043 - Chassis part power circuit breaker |
| ETIM 7: |
EC002043 - Chassis part power circuit breaker |
| ETIM 8: |
EC002043 - Chassis part power circuit breaker |
| Object Classification Code: |
Q |
| UNSPSC: |
39120000 |
| WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
