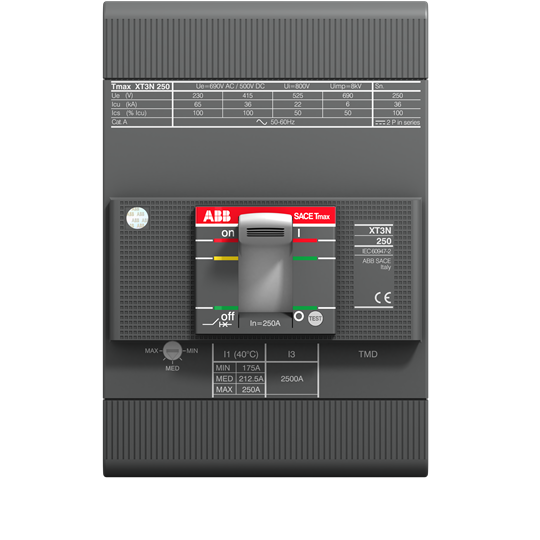

C.BREAKER TMAX XT3N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 250-2500 A
Specifications
Ordering
E-Number (Finland):
3641005
E-Number (Sweden):
3182434
EAN:
8015644019303
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090
Order Code US and Canada:
XT3NE3250AFF000XXX
Dimensions
Product Net Width:
105 mm
Product Net Height:
150 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1.64 kg
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
155 mm
Package Level 1 Height:
190 mm
Package Level 1 Depth / Length:
155 mm
Package Level 1 Gross Weight:
1.73 kg
Package Level 1 EAN:
8015644019303
Package Level 2 EAN:
8015644019303
Environmental
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Brand / Label:
ABB
Circuit Breaker Type to be Associated:
Power Distribution
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour8000 cycle
Mechanical Durability:
Nr. Operations 240 cycles per hourNr. Operations 25000 cycle
Number of Poles:
3
Opening Time:
CB with SOR 15 msCB with UVR 15 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 17.8 W
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
CB
Rated Current (In):
250 A
Rated Frequency (f):
50 / 60 Hz
Rated Voltage (Ur):
690 V
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
2500 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 37.5 kA(230 V AC) 37.5 kA(240 V AC) 37.5 kA(380 V AC) 27 kA(415 V AC) 27 kA(440 V AC) 18.75 kA(500 V AC) 15 kA(525 V AC) 9.75 kA(690 V AC) 3.75 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
(220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 25 kA(500 V AC) 20 kA(525 V AC) 13 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
