ABB
Regular price
R 1,027.62 ZAR
Regular price
R 1,868.40 ZAR
Sale price
R 1,027.62 ZAR
Unit price
/
per
SKU:
Part Number:1SDA066433R1
Couldn't load pickup availability

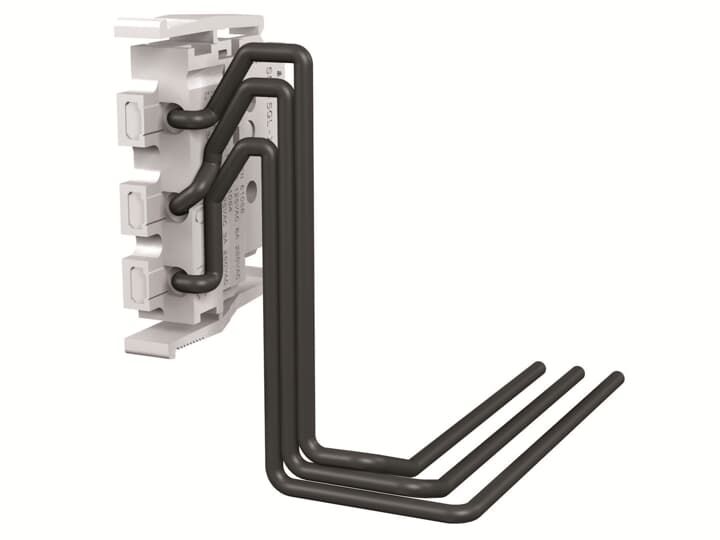

1 CHANGEOVER CONTACT OPEN-CLOSED + 1 CHANGEOVER FOR TRIPPED INDICATION V <(><<)> 24V DC WIRED ON C.BREAKER FIXED-PLUG-IN XT1..XT6
Specifications
| Ordering |
|---|
| E-Number (Finland): |
3638669 |
| EAN: |
8015644692704 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85389099 |
| Order Code US and Canada: |
KXTAAXC2QSYFP |
| Dimensions |
|---|
| Product Net Weight: |
0.127 kg |
| Container Information |
|---|
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
110 mm |
| Package Level 1 Height: |
60 mm |
| Package Level 1 Depth / Length: |
140 mm |
| Package Level 1 Gross Weight: |
0.134 kg |
| Package Level 1 EAN: |
8015644692704 |
| Environmental |
|---|
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information |
|---|
| Configuration Type: |
Loose or configurable |
| Number of Auxiliary Contacts CO (SPDT): |
3 |
| Order Multiple: |
1 piece |
| Product Main Type: |
Accessories for Tmax XT |
| Product Name: |
Accessory |
| Product Type: |
ACC |
| Standards: |
IEC 60947-2 |
| Suitable For: |
XT1XT2XT3XT4XT5XT6 |
| Suitable for Product Class: |
SACE Tmax XT |
| Certificates and Declarations (Document Number) |
|---|
| Data Sheet, Technical Information: |
1SDC210100D02061SDC210099D0206
|
| Declaration of Conformity - CE: |
Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals: |
1SDH000719R0615 |
| REACH Declaration: |
9AKK108466A1425 |
| RoHS Information: |
9AKK108466A1424 |
| Classifications |
|---|
| ETIM 6: |
EC000041 - Auxiliary contact block |
| ETIM 7: |
EC000041 - Auxiliary contact block |
| ETIM 8: |
EC000041 - Auxiliary contact block |
| Object Classification Code: |
Q |
| UNSPSC: |
39120000 |
| WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
