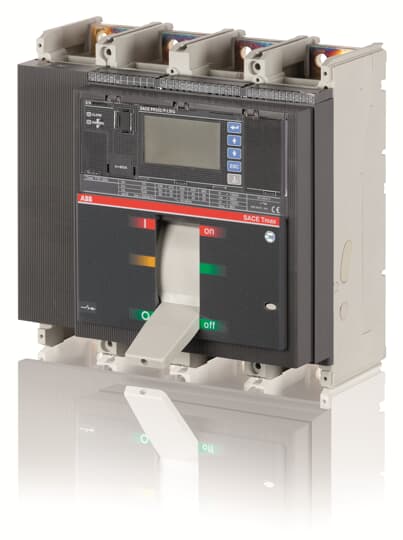

ABB Moulded Case Circuit Breaker T7S 1600 PR332/P LI In=1600A 4p F F 1SDA063005R1

ABB Moulded Case Circuit Breaker T7S 1600 PR332/P LI In=1600A 4p F F 1SDA063005R1

R 59,589.98 ZAR
R 108,345.41 ZAR R 59,589.98 ZAR
Sale Sold out

Part Number:1SDA063005R1

Shipping calculated at checkout.
C.BREAKER TMAX T7S 1600 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR332/P-LI R 1600

Specifications

Ordering
EAN: 8015644655549
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362090
Dimensions
Product Net Width: 280 mm
Product Net Height: 268 mm
Product Net Depth / Length: 154 mm
Product Net Weight: 12.5 kg
Container Information
Package Level 1 Units: 1 piece
Package Level 1 Width: 360 mm
Package Level 1 Height: 350 mm
Package Level 1 Depth / Length: 360 mm
Package Level 1 Gross Weight: 14 kg
Package Level 1 EAN: 8015644655549
Environmental
RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Electrical Durability: 2000 cycle60 cycles per hour
Mechanical Durability: 10000 cycle60 cycles per hour
Number of Poles: 4
Power Loss: at Rated Operating Conditions per Pole 77 W
Product Main Type: SACE Tmax T
Product Name: Moulded Case Circuit Breaker
Product Type: CB
Rated Current (In): Main Circuit 1600 A
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): 1000 V
Rated Operational Voltage: 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
Rated Uninterrupted Current (Iu): 1600 A
Release: PR332/P LI
Release Type: EL
Short-Circuit Performance Level: S
Standards: IEC
Sub-type: T7
Suitable For: T7
Suitable for Product Class: Moulded Case Circuit Breakers
Terminal Connection Type: Fixed Circuit-BreakersFront
Version: F
Certificates and Declarations (Document Number)
Data Sheet, Technical Information: 1SDC210015D0201
Declaration of Conformity - CE: 9AKK106713A5537
Environmental Information: 9AKK10103A1059
GL Certificate: 1SDL000163R0055
Instructions and Manuals: 1SDC210015D0201
REACH Declaration: 9AKK108466A1425
RoHS Information: 9AKK108466A1424
Classifications
ETIM 4: EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5: EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6: EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7: EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8: EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code: Q
UNSPSC: 39121100
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
