Danfoss
Regular price
R 111,470.61 ZAR
Regular price
R 159,243.73 ZAR
Sale price
R 111,470.61 ZAR
Unit price
/
per
SKU:
Part Number:131Z6726
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
35 kg |
| Net weight |
34.7 kg |
| Volume |
188.19 l |
| EAN |
5710107364114 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |

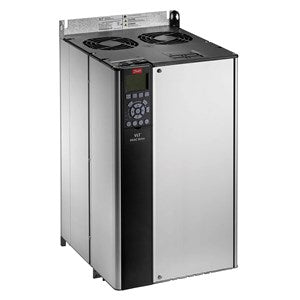

| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(P45K) 45 KW / 60 HP |
| Phase |
Three phase |
| Mains Voltage |
380 - 500 VAC |
| Enclosure |
(E20) IP20 / Chassis |
| RFI Filter |
RFI Filter |
| Brake - Safe Stop |
No brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
PROFIBUS DP MCA 101 |
| B Option |
MCB-105 Relay Card |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
MCB-107 24V DC backup |
| Frame Size |
C3 |
| Typecode Part 1 |
FC-302P45KT5E20H2XGC |
| Typecode Part 2 |
XXXSXXXXA0BPCXXXXD0 |
| Product Catalog |
NO VIEW |
| Power 150% (HO) [KW] |
45 |
| Power 110% (NO) [KW] |
55 |
| Height [mm] |
5500 |
| Width w/ no C options [mm] |
3080 |
| Depth [mm] |
3330 |
| Depth with Option A/B [mm] |
3330 |
| kVA |
62.4 |
| Power Loss NO [W] |
1083 |
| Power Loss NO [W] |
1083 |
| Power Loss HO [W] |
891 |
| Power Loss HO [W] |
891 |
| Continuous Current (NO) [A] |
106 |
| Intermittent Current (NO) [A] |
117 |
| Continuous Current (NO) [A] |
105 |
| Intermittent Current (NO) [A] |
116 |
| Continuous Current (HO) [A] |
90 |
| Intermittent Current (HO) [A] |
135 |
| Continuous Current (HO) [A] |
80 |
| Intermittent Current (HO) [A] |
120 |
| Calculated Gross Weight [kg] |
36.3 |
| Calculated Net Weight [kg] |
36 |
| Material Gross Weight |
35 |
| Material Net Weight |
34.7 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P45KT5E20H2XGC |
| Modelcode02 |
XXXSXXXXA0BPCXXXXD0 |
