Danfoss
Regular price
R 44,564.56 ZAR
Regular price
R 63,663.65 ZAR
Sale price
R 44,564.56 ZAR
Unit price
/
per
SKU:
Part Number:131G5445
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
22.2 kg |
| Net weight |
21.9 kg |
| Volume |
144.67 l |
| EAN |
5710107175079 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |

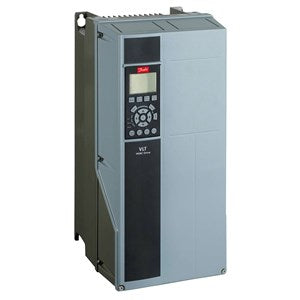

| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(P11K) 11 KW / 15 HP |
| Phase |
Three phase |
| Mains Voltage |
380 - 500 VAC |
| Enclosure |
(E66) IP66 / NEMA 4X |
| RFI Filter |
RFI Filter |
| Brake - Safe Stop |
No brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Not coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
PROFIBUS DP MCA 101 |
| B Option |
No B Option |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
MCB-107 24V DC backup |
| Frame Size |
B1 |
| Typecode Part 1 |
FC-302P11KT5E66H2XGX |
| Typecode Part 2 |
XXXSXXXXA0BXCXXXXD0 |
| Product Catalog |
NO VIEW |
| Power 160% (HO) [KW] |
11 |
| Power 110% (NO) [KW] |
15 |
| Height [mm] |
4800 |
| Width w/ no C options [mm] |
2420 |
| Depth [mm] |
2600 |
| Depth with Option A/B [mm] |
2600 |
| kVA |
16.6 |
| Power Loss NO [W] |
392 |
| Power Loss NO [W] |
392 |
| Power Loss HO [W] |
291 |
| Power Loss HO [W] |
291 |
| Continuous Current (NO) [A] |
32 |
| Intermittent Current (NO) [A] |
35.2 |
| Continuous Current (NO) [A] |
27 |
| Intermittent Current (NO) [A] |
29.7 |
| Continuous Current (HO) [A] |
24 |
| Intermittent Current (HO) [A] |
38.4 |
| Continuous Current (HO) [A] |
21 |
| Intermittent Current (HO) [A] |
33.6 |
| Calculated Gross Weight [kg] |
22.2 |
| Calculated Net Weight [kg] |
21.9 |
| Material Gross Weight |
22.2 |
| Material Net Weight |
21.9 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P11KT5E66H2XGX |
| Modelcode02 |
XXXSXXXXA0BXCXXXXD0 |
