Danfoss
Regular price
R 185,990.40 ZAR
Regular price
R 206,656.00 ZAR
Sale price
R 185,990.40 ZAR
Unit price
/
per
SKU:
Part Number:131F5961
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
116 kg |
| Net weight |
98 kg |
| Volume |
426.496 l |
| EAN |
5702427457997 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |

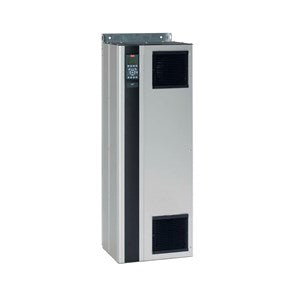

| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(P90K) 90 KW / 125 HP |
| Phase |
Three phase |
| Mains Voltage |
380 - 500 VAC |
| Enclosure |
IP21 / Type 1 |
| RFI Filter |
RFI Filter |
| Brake - Safe Stop |
No brake chopper |
| LCP |
No Loc. Cont. Panel |
| Coating PCB |
Not coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
No A Option |
| B Option |
No B Option |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
No D option |
| Frame Size |
D1 |
| Typecode Part 1 |
FC-302P90KT5E21H2XXX |
| Typecode Part 2 |
XXXSXXXXAXBXCXXXXDX |
| Product Catalog |
NO VIEW |
| Power 150% (HO) [KW] |
90 |
| Power 110% (NO) [KW] |
110 |
| kVA |
123 |
| Continuous Current (NO) [A] |
212 |
| Intermittent Current (NO) [A] |
233 |
| Continuous Current (NO) [A] |
190 |
| Intermittent Current (NO) [A] |
209 |
| Continuous Current (HO) [A] |
177 |
| Intermittent Current (HO) [A] |
266 |
| Continuous Current (HO) [A] |
160 |
| Intermittent Current (HO) [A] |
240 |
| Material Gross Weight |
116 |
| Material Net Weight |
98 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P90KT5E21H2XXX |
| Modelcode02 |
XXXSXXXXAXBXCXXXXDX |
