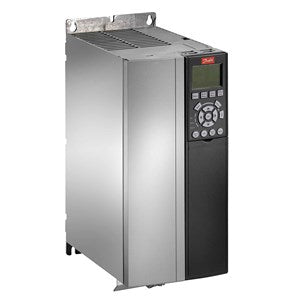

Danfoss
Regular price
R 53,312.82 ZAR
Regular price
R 76,161.17 ZAR
Sale price
R 53,312.82 ZAR
Unit price
/
per
SKU:
Part Number:131F5235
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
12.59 kg |
| Net weight |
11.62 kg |
| Volume |
57.75 l |
| EAN |
5702427449831 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(P15K) 15 KW / 20 HP |
| Phase |
Three phase |
| Mains Voltage |
380 - 500 VAC |
| Enclosure |
(E20) IP20 / Chassis |
| RFI Filter |
(H1) RFI Class A1/B (C1) |
| Brake - Safe Stop |
Brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Not coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
PROFIBUS DP MCA 101 |
| B Option |
No B Option |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
No D option |
| Frame Size |
B3 |
| Typecode Part 1 |
FC-302P15KT5E20H1BGX |
| Typecode Part 2 |
XXXSXXXXA0BXCXXXXDX |
| Product Catalog |
NO VIEW |
| Power 180% (HO) [KW] |
NV |
| Power 160% (HO) [KW] |
15 |
| Power 150% (HO) [KW] |
NV |
| Power 110% (NO) [KW] |
18.5 |
| Height [mm] |
3990 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Width w/ no C options [mm] |
1650 |
| Depth [mm] |
2490 |
| Depth with Option A/B [mm] |
2620 |
| kVA |
22.2 |
| Power Loss NO [W] |
465 |
| Power Loss NO [W] |
465 |
| Power Loss HO [W] |
379 |
| Power Loss HO [W] |
379 |
| Continuous Current (NO) [A] |
37.5 |
| Intermittent Current (NO) [A] |
41.2 |
| Continuous Current (NO) [A] |
34 |
| Intermittent Current (NO) [A] |
37.4 |
| Continuous Current (HO) [A] |
32 |
| Intermittent Current (HO) [A] |
51.2 |
| Continuous Current (HO) [A] |
27 |
| Intermittent Current (HO) [A] |
43.2 |
| Calculated Gross Weight |
12.3 |
| Calculated Net Weight [kg] |
12 |
| Material Gross Weight |
12.59 |
| Material Net Weight |
11.62 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P15KT5E20H1BGX |
| Modelcode02 |
XXXSXXXXA0BXCXXXXDX |
