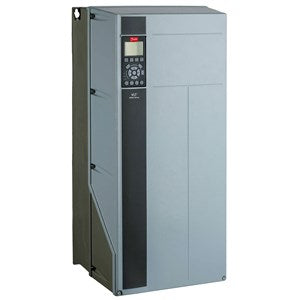

Danfoss
Regular price
R 135,824.06 ZAR
Regular price
R 194,034.38 ZAR
Sale price
R 135,824.06 ZAR
Unit price
/
per
SKU:
Part Number:131B6245
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
53.9 kg |
| Net weight |
28 kg |
| Volume |
228.095 l |
| EAN |
5702427340572 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(P55K) 55 KW / 75 HP |
| Phase |
Three phase |
| Mains Voltage |
380 - 500 VAC |
| Enclosure |
IP21 / Type 1 |
| RFI Filter |
RFI Filter |
| Brake - Safe Stop |
Brake chopper |
| LCP |
No Loc. Cont. Panel |
| Coating PCB |
Not coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
No A Option |
| B Option |
No B Option |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
No D option |
| Frame Size |
C2 |
| Typecode Part 1 |
FC-302P55KT5E21H2BXX |
| Typecode Part 2 |
XXXSXXXXAXBXCXXXXDX |
| Product Catalog |
NO VIEW |
| Power 150% (HO) [KW] |
55 |
| Power 110% (NO) [KW] |
75 |
| Height [mm] |
7700 |
| Width w/ no C options [mm] |
3700 |
| Depth [mm] |
3350 |
| Depth with Option A/B [mm] |
3350 |
| kVA |
73.4 |
| Power Loss NO [W] |
1384 |
| Power Loss NO [W] |
1384 |
| Power Loss HO [W] |
1022 |
| Power Loss HO [W] |
1022 |
| Continuous Current (NO) [A] |
147 |
| Intermittent Current (NO) [A] |
162 |
| Continuous Current (NO) [A] |
130 |
| Intermittent Current (NO) [A] |
143 |
| Continuous Current (HO) [A] |
106 |
| Intermittent Current (HO) [A] |
159 |
| Continuous Current (HO) [A] |
105 |
| Intermittent Current (HO) [A] |
158 |
| Calculated Gross Weight |
55.8 |
| Calculated Net Weight [kg] |
55.5 |
| Material Gross Weight |
53.9 |
| Material Net Weight |
28 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P55KT5E21H2BXX |
| Modelcode02 |
XXXSXXXXAXBXCXXXXDX |
