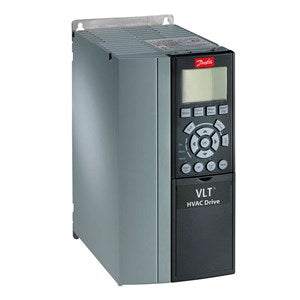

Danfoss
Regular price
R 26,648.06 ZAR
Regular price
R 38,068.65 ZAR
Sale price
R 26,648.06 ZAR
Unit price
/
per
SKU:
Part Number:131B3866
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
7.35 kg |
| Net weight |
6.76 kg |
| Volume |
22.04 l |
| EAN |
5702427233164 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(P5K5) 5.5 KW / 7.5 HP |
| Phase |
Three phase |
| Mains Voltage |
380 - 500 VAC |
| Enclosure |
(E20) IP20 / Chassis |
| RFI Filter |
(H1) RFI Class A1/B (C1) |
| Brake - Safe Stop |
Brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Not coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
No A Option |
| B Option |
MCB-101 General purp. I/O |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
No D option |
| Frame Size |
A3 |
| Typecode Part 1 |
FC-302P5K5T5E20H1BGX |
| Typecode Part 2 |
XXXSXXXXAXBKCXXXXDX |
| Product Catalog |
NO VIEW |
| Power 180% (HO) [KW] |
NV |
| Power 160% (HO) [KW] |
5.5 |
| Power 150% (HO) [KW] |
NV |
| Power 110% (NO) [KW] |
NV |
| Height [mm] |
2680 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Width w/ no C options [mm] |
1300 |
| Depth [mm] |
2050 |
| Depth with Option A/B [mm] |
2200 |
| kVA |
9.01 |
| Power Loss NO [W] |
NV |
| Power Loss NO [W] |
NV |
| Power Loss HO [W] |
187 |
| Power Loss HO [W] |
187 |
| Continuous Current (NO) [A] |
NV |
| Intermittent Current (NO) [A] |
NV |
| Continuous Current (NO) [A] |
NV |
| Intermittent Current (NO) [A] |
NV |
| Continuous Current (HO) [A] |
13 |
| Intermittent Current (HO) [A] |
20.8 |
| Continuous Current (HO) [A] |
11 |
| Intermittent Current (HO) [A] |
17.6 |
| Calculated Gross Weight |
7.1 |
| Calculated Net Weight [kg] |
6.8 |
| Material Gross Weight |
7.35 |
| Material Net Weight |
6.76 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P5K5T5E20H1BGX |
| Modelcode02 |
XXXSXXXXAXBKCXXXXDX |
