ABB
Regular price
R 642.05 ZAR
Regular price
R 1,167.36 ZAR
Sale price
R 642.05 ZAR
Unit price
/
per
SKU:
Part Number:1SDA054874R1
Couldn't load pickup availability

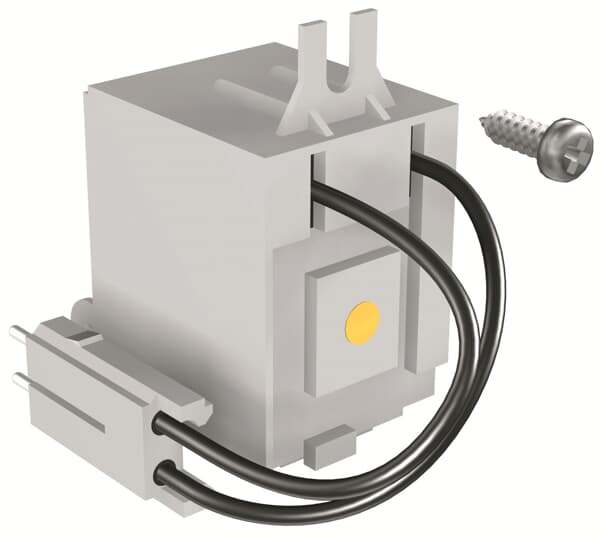

SHUNT OPENING RELEASE WIRED 380...440V AC T4-T5-T6
Specifications
| Ordering |
|---|
| E-Number (Sweden): |
3180969 |
| EAN: |
8015644560027 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85389099 |
| Order Code US and Canada: |
KT5S3 |
| Dimensions |
|---|
| Product Net Weight: |
0.12 kg |
| Container Information |
|---|
| Package Level 1 Units: |
1 piece |
| Package Level 1 Width: |
110 mm |
| Package Level 1 Height: |
60 mm |
| Package Level 1 Depth / Length: |
140 mm |
| Package Level 1 Gross Weight: |
0.15 kg |
| Package Level 1 EAN: |
8015644560027 |
| Environmental |
|---|
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information |
|---|
| Configuration Type: |
Loose or configurable |
| Current Type: |
AC |
| Product Main Type: |
Accessories for Tmax T |
| Product Name: |
Accessory |
| Product Type: |
ACC |
| Rated Voltage (Ur): |
380 ... 440 V AC |
| Standards: |
IEC |
| Suitable For: |
T4, T5, T6 |
| Suitable for Product Class: |
SACE Tmax T |
| Certificates and Declarations (Document Number) |
|---|
| Data Sheet, Technical Information: |
1SDC210015D02081SDC210300D0201
|
| Declaration of Conformity - CE: |
Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals: |
1SDH000436R0602 |
| REACH Declaration: |
9AKK108466A1425 |
| RoHS Information: |
9AKK108466A1424 |
| Classifications |
|---|
| ETIM 6: |
EC002483 - Switch spool for power circuit breaker |
| ETIM 7: |
EC002483 - Switch spool for power circuit breaker |
| ETIM 8: |
EC002483 - Switch spool for power circuit breaker |
| Object Classification Code: |
Q |
| UNSPSC: |
39120000 |
| WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
