ABB
Regular price
R 13,748.86 ZAR
Regular price
R 24,997.93 ZAR
Sale price
R 13,748.86 ZAR
Unit price
/
per
SKU:
Part Number:1SDA054129R1
Couldn't load pickup availability

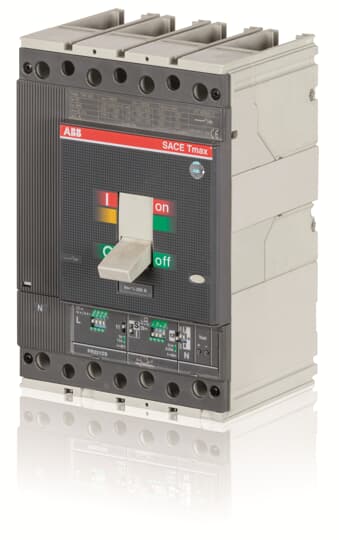

C.BREAKER TMAX T4S 320 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 320
Specifications
| Ordering |
|---|
| E-Number (Finland): |
3655198 |
| E-Number (Sweden): |
3180330 |
| EAN: |
8015644552282 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85362090 |
| Dimensions |
|---|
| Product Net Width: |
140 mm |
| Product Net Height: |
205 mm |
| Product Net Depth / Length: |
103.5 mm |
| Product Net Weight: |
3.05 kg |
| Container Information |
|---|
| Package Level 1 Units: |
1 piece |
| Package Level 1 Width: |
248 mm |
| Package Level 1 Height: |
240 mm |
| Package Level 1 Depth / Length: |
285 mm |
| Package Level 1 Gross Weight: |
3.5 kg |
| Package Level 1 EAN: |
8015644552282 |
| Environmental |
|---|
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information |
|---|
| Electrical Durability: |
6000 cycle120 cycles per hour |
| Mechanical Durability: |
20000 cycle240 cycles per hour |
| Number of Poles: |
4 |
| Power Loss: |
at Rated Operating Conditions per Pole 17.6 W |
| Product Main Type: |
SACE Tmax T |
| Product Name: |
Moulded Case Circuit Breaker |
| Product Type: |
CB |
| Rated Current (In): |
Main Circuit 320 A |
| Rated Impulse Withstand Voltage (Uimp): |
8 kV |
| Rated Insulation Voltage (Ui): |
1000 V |
| Rated Operational Voltage: |
690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics): |
(220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(690 V) 25 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): |
(220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(690 V AC) 25 kA |
| Rated Uninterrupted Current (Iu): |
320 A |
| Release: |
PR221DS-LS/I |
| Release Type: |
EL |
| Short-Circuit Performance Level: |
S |
| Standards: |
IEC 60947 |
| Sub-type: |
T4 |
| Suitable For: |
T4 |
| Suitable for Product Class: |
Moulded Case Circuit Breakers |
| Terminal Connection Type: |
Fixed Circuit-BreakersFront |
| Test Voltage Max (Utest): |
3500 V |
| Test Voltage at Industrial Frequency for 1 Minute: |
3500 V |
| Version: |
F |
| Certificates and Declarations (Document Number) |
|---|
| Data Sheet, Technical Information: |
1SDC210004D0203 |
| Declaration of Conformity - CE: |
9AKK106713A5540 |
| Environmental Information: |
9AKK10103A1057 |
| GL Certificate: |
1SDL000163R0061 |
| Instructions and Manuals: |
1SDH000436R0001 |
| Instructions and Manuals (Part 2): |
ITSCE-RH0100001 |
| REACH Declaration: |
9AKK108466A1425 |
| RoHS Information: |
9AKK108466A1424 |
| Classifications |
|---|
| ETIM 4: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: |
EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8: |
EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code: |
Q |
| UNSPSC: |
39121100 |
| WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
