ABB Sense7Z 5M Sensor 2TLA050056R5120

Name: ABB Sense7Z 5M Sensor 2TLA050056R5120
Brand: ABB
SKU: 2TLA050056R5120
Availability: In Stock subject to prior of sale

R 0.00 ZAR

~~R 0.00 ZAR~~ R 0.00 ZAR

Sale Sold out

SKU: Part Number:2TLA050056R5120

Shipping calculated at checkout.

Product variants

Quantity

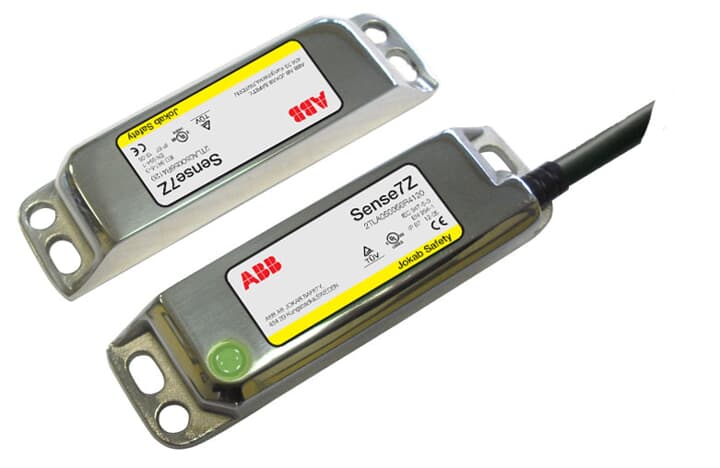

Safety magnetic switch complete with actuator, 2NC+1NO (guard closed and actuator present), stainless steel, LED, 5m cable (8 leads).Sense7 is a coded magnetic non-contact switch for interlocking gates and hatches, or other moveable parts. Sense7 has a stainless steel housing that is designed for harsh environments and extreme temperatures. Sense7 offers an interlocking function reaching up to PL e/SIL3 with low level coding.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8536500500
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Data Sheet, Technical Information (Part 2):	2TLC010127D0201
Instructions and Manuals:	2TLC172249M0201
Marketing Video:	2TLC010018N0201
Dimensions
Product Net Depth / Length:	14 mm
Product Net Height:	50 mm
Product Net Width:	88 mm
Product Net Weight:	0.438 kg
Technical
Degree of Protection:	IP67IP69K
Number of Outputs:	Failsafe (Transistor) 2Non-Failsafe, Undelayed Semiconductors 1
Operating Distance (Sn):	5 mm
Performance Level (PL):	Up to e
Probability of Dangerous Failure per Hour (PFDH):	2.6 10-8 hour
Rated Control Supply Voltage (Us):	24 V DC
Certificates and Declarations (Document Number)
cULus Certificate:	2TLC010041D0201
Declaration of Conformity - CE:	2TLC010060D0201
Declaration of Conformity - UKCA:	2TLC010184D0201
Instructions and Manuals:	2TLC172249M0201
TV Certificate:	2TLC172125D0201
Classifications
Object Classification Code:	B
ETIM 6:	EC002544 - Magnetic proximity switch
ETIM 7:	EC002544 - Magnetic proximity switch
ETIM 8:	EC002544 - Magnetic proximity switch
eClass:	V11.0 : 27272402
UNSPSC:	39122205
