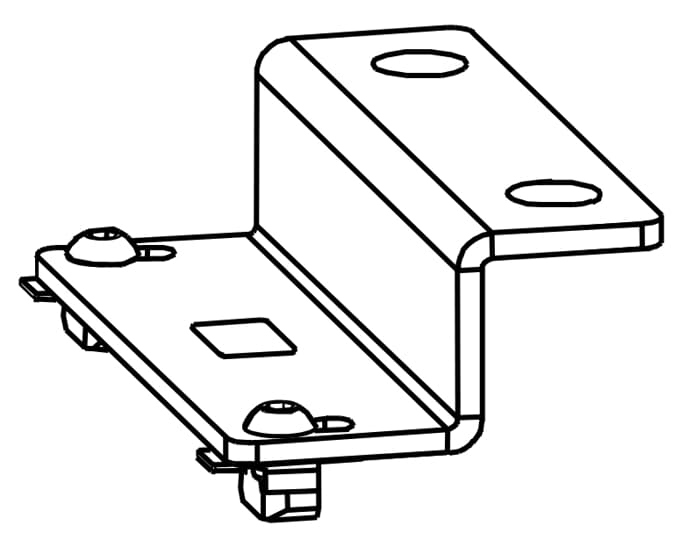

ABB JSM D21B Mounting kit 2TLA042023R0500

Name: ABB JSM D21B Mounting kit 2TLA042023R0500
Brand: ABB
SKU: 2TLA042023R0500
Availability: In Stock subject to prior of sale

R 0.00 ZAR

~~R 0.00 ZAR~~ R 0.00 ZAR

Sale Sold out

SKU: Part Number:2TLA042023R0500

Shipping calculated at checkout.

Product variants

Quantity

Mounting kit for Magne with anchor plates 32A and 32B. Steel. For hinged doors with a 5’15 mm door gap. Fits all Magne. Note: when used with Magne with integrated Adam, a mounting kit is also required for Eva (JSM D24).

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	7610909000
Popular Downloads
Data Sheet, Technical Information:	2TLC010096L0201
Data Sheet, Technical Information (Part 2):	2TLC010104D0201
Instructions and Manuals:	2TLC172315M0201
Marketing Video:	2TLC010018N0201
Dimensions
Product Net Depth / Length:	90 mm
Product Net Height:	150 mm
Product Net Width:	55 mm
Product Net Weight:	0.715 kg
Technical
Suitable For:	Magne 3X M12-5Magne 4X DYN M12-5Magne 4 DYN-InfoMagne 4 DYN-2 InfoMagne 4 OSSD-InfoMagne Anchor 32AMagne Anchor 32B
Certificates and Declarations (Document Number)
cUL Certificate:	2TLC010012D0201
Declaration of Conformity - CE:	2TLC172262D0201
Instructions and Manuals:	2TLC172315M0201
TV Certificate:	2TLC010013D0201
Classifications
Object Classification Code:	U
ETIM 6:	EC002903 - Accessories for electrical door opener
ETIM 7:	EC002903 - Accessories for electrical door opener
ETIM 8:	EC002903 - Accessories/spare parts for electrical door opener
eClass:	V11.0 : 23390192
E-Number (Sweden):	3860191
