Part Number: 1SVR760487R8300
Couldn't load pickup availability
Refresh

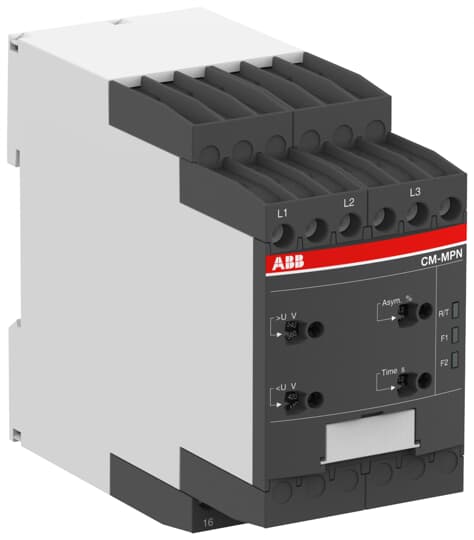

The CM-MPN.52S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 350-580 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable. The CM-MPN.52S also offers selection of phase sequence monitoring, automatic phase sequence correction as well as an ON or OFF tripping delay. The output contacts can be configured as 1x2 c/o (SPDT) contacts (common signal) or 2x1 c/o (SPDT) contact (separate signal for over- and undervoltage thresholds) operation. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Popular Downloads
Data Sheet, Technical Information:
2CDC112177D0201
Instructions and Manuals:
1SVC730730M1000
Dimensions
Product Net Width:
45 mm
Product Net Depth / Length:
104.8 mm
Product Net Height:
85.6 mm
Product Net Weight:
0.226 kg
Technical
Function:
Automatic phase sequence correctionOver- and undervoltage monitoringPhase failure detectionPhase unbalance detectionPhase sequence monitoring
Standards:
CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508
Measuring Range:
(L-L) 350 ... 580 V AC
Rated Control Supply Voltage (Us):
(L-L) 350 ... 580 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Time Range:
0 s or 0.1 ... 30 s tripping delay (ON or OFF)200 ms start-up delay
Terminal Type:
Screwless Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V10 mA
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 1000 VOutput Circuit 1 / Output Circuit 2 300 V
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 8 kVOutput Circuit 4 kV
Degree of Protection:
Housing IP50Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
30000000 cycle
Connecting Capacity:
Flexible with Ferrule 2x 0.5 ... 1.5 mm?ýFlexible with Insulated Ferrule 2x 0.5 ... 1.5 mm?ýFlexible 2x 0.5 ... 1.5 mm?ýRigid 2x 0.5 ... 1.5 mm?ý
Wire Stripping Length:
8 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Environmental
Ambient Air Temperature:
Operation -25 ... +60 ?øCStorage -40 ... +85 ?øC
Maximum Operating Altitude Permissible:
Without Derating 2000 m
RoHS Status:
Following EU Directive 2011/65/EU
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 2x 18-16 AWGRigid 2x 20-16 AWG
Certificates and Declarations (Document Number)
CB Certificate:
CB_DK-27946-UL
CQC Certificate:
CQC2009010303326655
cULus Certificate:
cULus508_20120829-E140448
Declaration of Conformity - CCC:
2020980303000197
Declaration of Conformity - CE:
1SVD981014-00
Declaration of Conformity - UKCA:
1SVD981014-10
DNV GL Certificate:
DNV_GL_TAA000017D
EAC Certificate:
EAC_RU_C-DE.ME77.B.03424
Instructions and Manuals:
1SVC730730M1000
RoHS Information:
1SVD981014-00
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Height:
109 mm
Package Level 1 Depth / Length:
52.5 mm
Package Level 1 Gross Weight:
0.251 kg
Package Level 1 EAN:
4016779852098
Classifications
Object Classification Code:
B
ETIM 4:
EC001441 - Phase monitoring relay
ETIM 5:
EC001441 - Phase monitoring relay
ETIM 6:
EC001441 - Phase monitoring relay
ETIM 7:
EC001441 - Phase monitoring relay
eClass:
V11.0 : 27371803
UNSPSC:
39121536
E-Number (Finland):
2712263
E-Number (Sweden):
3860611
ETIM 8:
EC001441 - Phase monitoring relay
