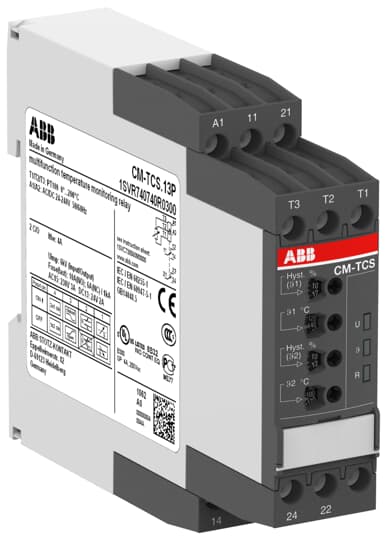

The CM-TCS.13P relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.13P is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.13P monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is 0..+200?øC. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Ordering
EAN:
4016779852791
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Popular Downloads
Data Sheet, Technical Information:
2CDC112199D0201
Instructions and Manuals:
1SVC730560M1001
Dimensions
Product Net Width:
22.5 mm
Product Net Depth / Length:
103.7 mm
Product Net Height:
85.6 mm
Product Net Weight:
0.14 kg
Technical
Function:
Overtemperature monitoringUndertemperature monitoringOver- and undertemperature monitoring
Measuring Range:
0 ... +200 ?øC
Sensor Type:
PT100
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Rated Frequency (f):
Supply Circuit 50 HzSupply Circuit 60 HzSupply Circuit DC
