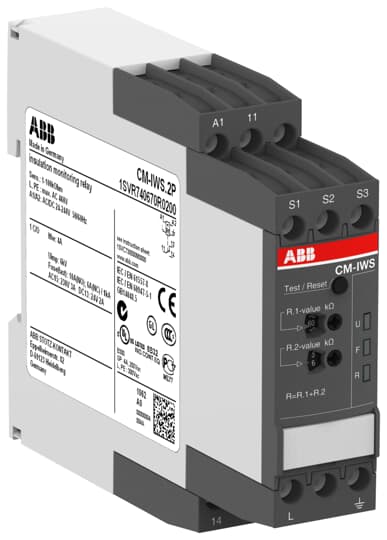

ABB CM-IWS.2P Insulation monitoring relay 1c/o, 1-100kOhm, 24-240VAC/DC 1SVR740670R0200

ABB CM-IWS.2P Insulation monitoring relay 1c/o, 1-100kOhm, 24-240VAC/DC 1SVR740670R0200

R 2,353.92 ZAR
R 4,279.86 ZAR R 2,353.92 ZAR
Sale Sold out

Part Number:1SVR740670R0200

Shipping calculated at checkout.
The CM-IWS.2P serves to monitor insulation resistance in accordance with IEC 61557-8 in unearthed IT AC systems with a voltage up to 400 V AC. The CM-IWS.2 can be configured to the requirements of the applications and therefore used multi-functional.

Specifications

Ordering
EAN: 4016779852654
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85364900
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 97 mm
Package Level 1 Height: 109 mm
Package Level 1 Depth / Length: 30 mm
Package Level 1 Gross Weight: 0.155 kg
Package Level 1 EAN: 4016779852654
Dimensions
Product Net Width: 22.5 mm
Product Net Depth / Length: 103.7 mm
Product Net Height: 85.6 mm
Product Net Weight: 0.13 kg
Technical
Function: Unearthed AC systemsUp to 400 V AC
Measuring Range: 1 ... 100 kÆ’
Rated Control Supply Voltage (Us): 24 ... 240 V AC/DC
Output: 1 c/o (SPDT) contact
System Leakage Capacitance (CE): 10 ?æF
Terminal Type: Screwless Terminals
Environmental
RoHS Status: Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CB Certificate: CB_DK-30302-A1-UL
CCC Certificate: CCC_2010010303438770
CQC Certificate: CQC2010010303438770
cULus Certificate: cULus508_20120727-E140448
Data Sheet, Technical Information: 2CDC112196D0201
Declaration of Conformity - CCC: 2020980303000184
Declaration of Conformity - CE: 1SVD981011-00
Declaration of Conformity - UKCA: 1SVD981011-10
DNV GL Certificate: DNV_GL_TAA000017C
EAC Certificate: EAC_RU_C-DE.ME77.B.03424
Instructions and Manuals: 1SVC730550M0000
RoHS Information: 1SVD981011-00
Classifications
Object Classification Code: B
ETIM 4: EC001444 - Insulation and earth fault monitoring relay
ETIM 5: EC001444 - Insulation and earth fault monitoring relay
ETIM 6: EC001444 - Insulation and earth fault monitoring relay
ETIM 7: EC001444 - Insulation and earth fault monitoring relay
eClass: V11.0 : 27371807
E-Number (Finland): 2712261
E-Number (Sweden): 3860660
