Part Number: 1SVR550824R9100
Couldn't load pickup availability
Refresh

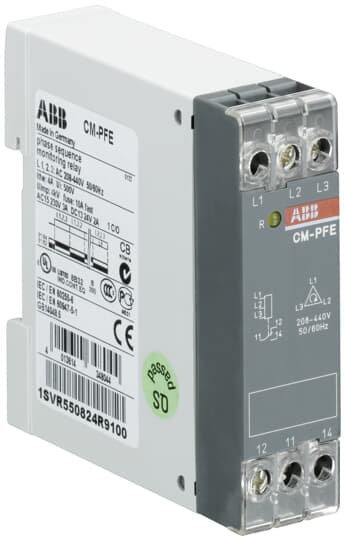

The CM-PFE relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 208-440 V AC and has a 1 c/o output (closed circuit principle) with contacts rated at 250 V / 4 A. The CM-PFE monitors the phase loss and phase sequence. The corresponding threshold values are fixed. The relay is suitable for monitoring of three phase mains.
Specifications
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Popular Downloads
Data Sheet, Technical Information:
2CDC112231D0201
Instructions and Manuals:
1SVC550510M0001
Dimensions
Product Net Width:
22.5 mm
Product Net Depth / Length:
78.5 mm
Product Net Height:
78 mm
Product Net Weight:
0.068 kg
Technical
Function:
Phase failure detectionPhase sequence monitoring
Standards:
CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508
Measuring Range:
(L-L) 208 ... 440 V AC
Rated Control Supply Voltage (Us):
(L-L) 208 ... 440 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 c/o (SPDT) contact
Time Range:
500 ms start-up delay500 ms tripping delay
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 600 V
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 6 kV
Degree of Protection:
Housing IP50Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible with Ferrule 2x 0.75 ... 1.5 mm?ýFlexible 2x 1 ... 1.5 mm?ýRigid 2x 0.75 ... 1.5 mm?ý
Tightening Torque:
0.6 ... 0.8 N?úm
Wire Stripping Length:
10 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Environmental
Ambient Air Temperature:
Operation -20 ... +60 ?øCStorage -40 ... +85 ?øC
Maximum Operating Altitude Permissible:
Without Derating 2000 m
RoHS Status:
Following EU Directive 2011/65/EU
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Output Circuit 250 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible with Ferrule 2x 18-16 AWGFlexible 2x 18-16 AWGRigid 2x 18-16 AWG
Tightening Torque UL/CSA:
7.08 in?úlb
Certificates and Declarations (Document Number)
CB Certificate:
CB_DK-8880
CCC Certificate:
CCC_2013010303605960
CQC Certificate:
CQC2013010303605960
cUL Certificate:
cUL508_E140448
Declaration of Conformity - CCC:
2020980303000202
Declaration of Conformity - CE:
1SVD981026-00
Declaration of Conformity - UKCA:
1SVD981026-10
EAC Certificate:
EAC_RU_C-DE.ME77.B.03206
Instructions and Manuals:
1SVC550510M0001
RoHS Information:
1SVD981026-00
UL Certificate:
UL508_E140448
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
23 mm
Package Level 1 Height:
82 mm
Package Level 1 Depth / Length:
82 mm
Package Level 1 Gross Weight:
0.08 kg
Package Level 1 EAN:
4013614348044
Classifications
Object Classification Code:
B
ETIM 4:
EC001441 - Phase monitoring relay
ETIM 5:
EC001441 - Phase monitoring relay
ETIM 6:
EC001441 - Phase monitoring relay
ETIM 7:
EC001441 - Phase monitoring relay
eClass:
V11.0 : 27371803
UNSPSC:
39121536
E-Number (Finland):
3580833
E-Number (Sweden):
3860173
ETIM 8:
EC001441 - Phase monitoring relay
