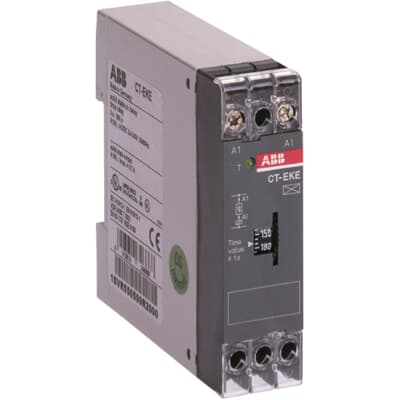

The CT-EKE is a single-function electronic time relay from the CT-E timer range. It provides an ON-delay (delay on make) function with a time range from 3 s to 300 s. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a solid-state output.
Specifications
Ordering
EAN:
4013614346668
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Replacement Product ID (NEW):
1SVR508010R1300
Popular Downloads
Data Sheet, Technical Information:
2CDC111142D0201
Instructions and Manuals:
1SVC550000M9000
Dimensions
Product Net Width:
22.5 mm
Product Net Height:
78 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.05 kg
Technical
Timer Relay Type:
ON-Delay
Time Range:
3 ... 300 s
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Output:
solid-state output
Terminal Type:
Screw Terminals
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
