Part Number: 1SVR508211R0100
Couldn't load pickup availability
Refresh

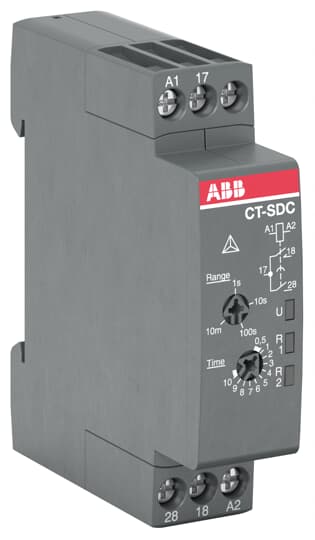

The CT-SDC.22 is a single-function electronic time relay from the CT-C timer range. It provides a star-delta function with 7 time ranges from 0.05 s to 10 min. and a fixed transition time of 50 ms. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 n/o output with contacts rated at 250 V / 4 A.
Specifications
Ordering
EAN:
4013614534232
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Popular Downloads
Data Sheet, Technical Information:
2CDC110004C0210_01
Instructions and Manuals:
1SVC500020M0001
Dimensions
Product Net Width:
17.5 mm
Product Net Height:
70 mm
Product Net Depth / Length:
63 mm
Product Net Weight:
0.059 kg
Technical
Timer Relay Type:
Star-Delta
Time Range:
0.05 s ... 10 min
Rated Control Supply Voltage (Us):
24 ... 240 V AC24 ... 48 V DC
Rated Frequency (f):
50 Hz60 HzDC
Output:
2 n/o contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V100 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 300 VOutput Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible 1x 0.5 ... 2.5 mm?ýFlexible 2x 0.5 ... 1.5 mm?ýRigid 1x 0.5 ... 4 mm?ýRigid 2x 0.5 ... 1.5 mm?ý
Tightening Torque:
0.5 ... 0.8 N?úm
Wire Stripping Length:
7 mm
Recommended Screw Driver:
Pozidriv 10.8 x 4
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14IEC/EN 63000IEC 61812-1UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-16 AWG
Tightening Torque UL/CSA:
4.43 ... 7.08 in?úlb
Environmental
Ambient Air Temperature:
Operation -20 ... +60 ?øCStorage -40 ... +85 ?øC
Maximum Operating Altitude Permissible:
Without Derating 2000 m
RoHS Status:
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CCC Certificate:
CCC_2019010303150608
CQC Certificate:
CQC2019010303150608
cULus Certificate:
cULus_20031209-E140448
Data Sheet, Technical Information:
2CDC110004C0210_01
Declaration of Conformity - CCC:
2020980303000209
Declaration of Conformity - CE:
1SVD981068
Declaration of Conformity - UKCA:
1SVD981068-10
DNV GL Certificate:
DNV_GL_TAA00002TS
EAC Certificate:
EAC_RU_C-DE.ME77.B.03531
Environmental Information:
1SAC200110H0001
Instructions and Manuals:
1SVC500020M0001
RoHS Information:
1SVD981068
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
89 mm
Package Level 1 Depth / Length:
20 mm
Package Level 1 Height:
65 mm
Package Level 1 Gross Weight:
0.071 kg
Package Level 1 EAN:
4013614534232
Classifications
Object Classification Code:
K
ETIM 5:
EC001439 - Timer relay
ETIM 6:
EC001439 - Timer relay
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39121519
E-Number (Finland):
2712835
E-Number (Sweden):
