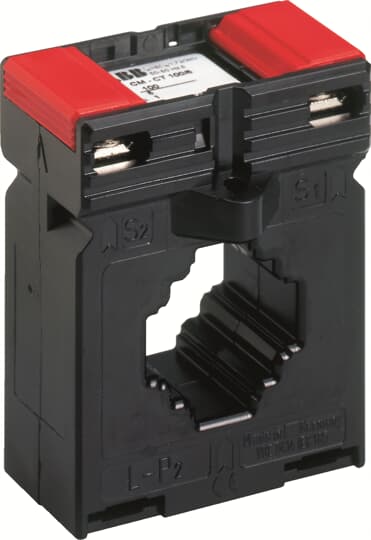

ABB CM-CT 100/5 Current transformer 2.5VA, class 1 1SVR450116R5200

ABB CM-CT 100/5 Current transformer 2.5VA, class 1 1SVR450116R5200

R 534.57 ZAR
R 971.95 ZAR R 534.57 ZAR
Sale Sold out

Part Number:1SVR450116R5200

Shipping calculated at checkout.
The CM-CT 100/5 is a plug-in current transformer from the CM-CT range. The current transformer has a rated primary current of 100 A and a secondary rated current of 5 A. The burden of the current transformer is 2.5 VA and its precision is according to class 1. The CM-CT 100/5 will be delivered with foot angle, insulating protective cap and bar fastening screws. A snap-on mounting for DIN rail is avaiable as accessory.

Specifications

Technical
Standards: IEC/EN 63000IEC/EN 61869-1IEC/EN 61869-2
Function: Current transformer
Suitable For: CM-SRS.12SCM-SRS.12PCM-SRS.22SCM-SRS.22PCM-SRS.M2SCM-SFS.22S
Suitable for Product Class: Single Phase Monitors
Rated Primary Current (Ipn): 100 A
Rated Secondary Current (Isn): 5 A
Environmental
RoHS Status: Following EU Directive 2011/65/EU
Dimensions
Product Net Width: 61 mm
Product Net Height: 78.5 mm
Product Net Depth / Length: 48 mm
Product Net Weight: 0.31 kg
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 62 mm
Package Level 1 Height: 52 mm
Package Level 1 Depth / Length: 90 mm
Package Level 1 Gross Weight: 0.315 kg
Package Level 1 EAN: 4013614376856
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85043129
Certificates and Declarations (Document Number)
Declaration of Conformity - CE: 1SVD982015-00
Declaration of Conformity - UKCA: 1SVD982015-10
Instructions and Manuals: 1SVC450000M9000
RoHS Information: 1SVD982015-0001
Regulatory Compliance Mark (RCM):
Popular Downloads
Data Sheet, Technical Information: 2CDC110004C0210_02
Instructions and Manuals: 1SVC450000M9000
Classifications
ETIM 7: EC002048 - Current transformer
ETIM 8: EC002048 - Current transformer
EPLAN Catalog Tree: Electrical engineering / General / General
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B: Business To Business
CN8: 8504 31 29
eClass: V11.0 : 27210902
Object Classification Code: T
