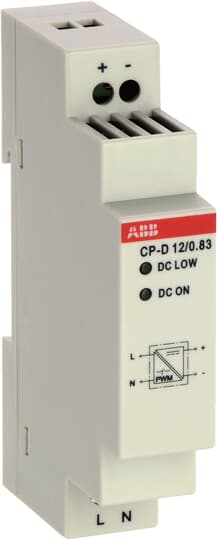

| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85044090 |
| Popular Downloads |
|---|
| Data Sheet, Technical Information: |
2CDC114052D0201 |
| Instructions and Manuals: |
1SVC427040M0000 |
| Dimensions |
|---|
| Product Net Width: |
18 mm |
| Product Net Height: |
91 mm |
| Product Net Depth / Length: |
57.5 mm |
| Product Net Weight: |
0.066 kg |
| Container Information |
|---|
| Package Level 1 Width: |
91 mm |
| Package Level 1 Depth / Length: |
134 mm |
| Package Level 1 Height: |
34 mm |
| Package Level 1 Gross Weight: |
0.111 kg |
| Package Level 1 EAN: |
4016779661201 |
| Package Level 1 Units: |
box 1 piece |
| Technical |
|---|
| Function: |
Switch mode power supply |
| Number of Phases: |
1 |
| Rated Input Voltage (UIN): |
100 ... 240 V AC |
| Input Voltage (Uin): |
90 ... 264 V AC120 ... 375 V DC |
| Rated Frequency (f): |
50 Hz60 Hz |
| Rated Frequency Limits: |
47 ... 63 Hz |
| Characteristic of Output: |
Hiccup-mode |
| Rated Output Power: |
10 W |
| Output Power: |
10 W |
| Rated Output Voltage: |
12 V DC |
| Output Voltage (Uout): |
12 V DC |
| Rated Output Current: |
0.83 A |
| Output Current: |
0.83 A |
| Output Current Maximum (Iout): |
0.83 A |
| Rated Impulse Withstand Voltage (Uimp): |
Input Circuit / Output Circuit 3 kV |
| Rated Insulation Voltage (Ui): |
Input Circuit / Output Circuit 300 VInput Circuit / PE 300 VOutput Circuit / PE 50 V |
| Degree of Protection: |
Housing IP20Terminals IP20 |
| Pollution Degree: |
2 |
| Connecting Capacity Input Circuit: |
Flexible with Ferrule 0.2 ... 1.5 mm?ýRigid 0.2 ... 2.5 mm?ý |
| Connecting Capacity Output Circuit: |
Flexible with Ferrule 0.2 .... 2.5 mm?ýRigid 0.2 ... 2.5 mm?ý |
| Tightening Torque: |
Input Circuit 0.6 N?úmOutput Circuit 0.6 N?úm |
| Wire Stripping Length: |
Input Circuit 4 mmOutput Circuit 4 mm |
| Minimum Mounting Distance: |
Electrical Conductive Board, Horizontal 25 mmElectrical Conductive Board, Vertical 25 mmOther Device Same Type, Horizontal 25 mmOther Device Same Type, Vertical 25 mm |
| Mounting Position: |
1 |
| Mounting on DIN Rail: |
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards: |
CAN/CSA C22.2 No.107.1CAN/CSA C22.2 No.223CAN/CSA C22.2 No.60950IEC/EN 63000IEC 60950-1IEC/EN 61000-6-2IEC/EN 61000-6-3UL 1310UL 508UL 60950 |
| Environmental |
|---|
| Ambient Air Temperature: |
Operation -40 ... +70 ?øCStorage -40 ... +85 ?øC |
| Maximum Operating Altitude Permissible: |
4850 m |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Technical UL/CSA |
|---|
| Connecting Capacity Input Circuit UL/CSA: |
Rigid 24-12 AWG |
| Connecting Capacity Output Circuit UL/CSA: |
Rigid 24-12 AWG |
| Tightening Torque UL/CSA: |
Input Circuit 5 in?úlbOutput Circuit 5 in?úlb |
| Electromagnetic Compatibility |
|---|
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2: |
Level 4 Air Discharge 8 kVLevel 4 Contact Discharge 4 kV |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3: |
Level 3 10 V/m |
| Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4: |
Level 4 Power Supply Port Signal 4 kV |
| Surge Immunity acc. to IEC 61000-4-5: |
Level 3 Line-to-Line 2 kV |
| Conducted Disturbances Immunity acc. to IEC 61000-4-6: |
Level 3 10 V |
| Electromagnetic Compatibility (EMC): |
Emission - Class BImmunity - Class B |
| Certificates and Declarations (Document Number) |
|---|
| cUL Certificate: |
cUL508_E174460 |
| cUR Certificate: |
cUR60950_E196145cUR1310_E313203
|
| Declaration of Conformity - CE: |
1SVD982007-00 |
| Declaration of Conformity - UKCA: |
1SVD982007-10 |
| EAC Certificate: |
EAC_RU_C-DE.ME77.B.00768_20 |
| Instructions and Manuals: |
1SVC427040M0000 |
| RoHS Information: |
1SVD982007 |
| UL Certificate: |
UL508_E174460 |
| UR Certificate: |
UR60950_E196145UR1310_E313203
|
| Classifications |
|---|
| Object Classification Code: |
T |
| ETIM 4: |
EC002540 - DC-power supply |
| ETIM 5: |
EC002540 - DC-power supply |
| ETIM 6: |
EC002540 - DC-power supply |
| ETIM 7: |
EC002540 - DC-power supply |
| ETIM 8: |
EC002540 - DC-power supply |
| eClass: |
V11.0 : 27040701 |
| UNSPSC: |
39121004 |
| E-Number (Finland): |
2712076 |
| E-Number (Sweden): |
5218727 |
