ABB
Regular price
R 55.66 ZAR
Regular price
R 101.20 ZAR
Sale price
R 55.66 ZAR
Unit price
/
per
Sale
Sold out
SKU:
Part Number: 1SVR405660R1100
Couldn't load pickup availability
Refresh

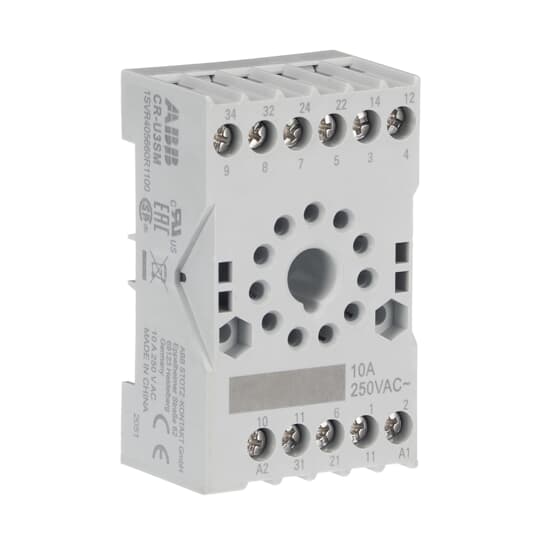

The CR-U3SM socket is from the CR-U (universal) relay range. The small socket is suitable for CR-U relays with 3 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.
Specifications
Ordering
Minimum Order Quantity:
10 piece
Customs Tariff Number:
85369010
Popular Downloads
Data Sheet, Technical Information:
2CDC110004C0210_05
Instructions and Manuals:
1SVC405650M9000
Dimensions
Product Net Width:
38 mm
Product Net Height:
24.2 mm
Product Net Depth / Length:
68.2 mm
Product Net Weight:
0.058 kg
Technical
Function:
Accessory for interface relays CR-U
Sub-Function:
Socket for universal relays
Sub-Function 2:
Socket small for universal relay 3 c/o
Output:
none
Terminal Type:
Screw Terminals
Environmental
RoHS Status:
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CSA Certificate:
CSA_262671_2785566
cURus Certificate:
cURus508_E244328
Declaration of Conformity - CE:
1SVD982020-0001
Declaration of Conformity - UKCA:
1SVD982020-1000
EAC Certificate:
EAC_RU_C-DE.ME77.B.00446-19
Environmental Information:
1SAA981009-2401
Instructions and Manuals:
1SVC405650M9000
RoHS Information:
1SVD982020-0001
Container Information
Package Level 1 Units:
box 10 piece
Package Level 1 Width:
73 mm
Package Level 1 Height:
84 mm
Package Level 1 Depth / Length:
120 mm
Package Level 1 Gross Weight:
0.594 kg
Package Level 1 EAN:
4013614378898
Classifications
Object Classification Code:
K
ETIM 4:
EC001456 - Relay socket
ETIM 5:
EC001456 - Relay socket
ETIM 6:
EC001456 - Relay socket
ETIM 7:
EC001456 - Relay socket
ETIM 8:
EC001456 - Relay socket
eClass:
V11.0 : 27371603
UNSPSC:
39122335
