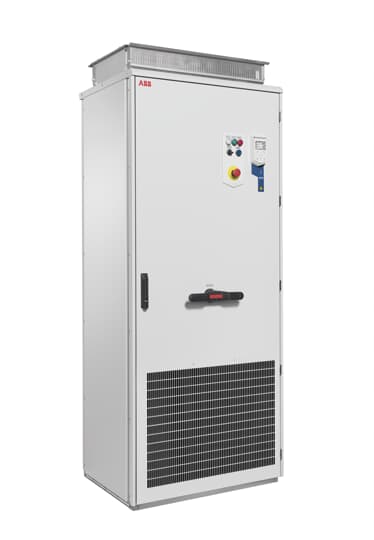

The ACQ580-07 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact cabinet-built drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ready-made standalone cabinet-built ACQ580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Specifications
Ordering
Country of Origin:
Finland (FI)Estonia (EE)
Customs Tariff Number:
85044084
Invoice Description:
ACQ580-07-0880A-4 PN: 500 kW, IN: 880 A
Made To Order:
Yes
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Container Information
Gross Volume:
1.243 m³
Dimensions
Product Net Weight:
440 kg
Product Net Depth / Length:
698 mm
Product Net Height:
2145 mm
Product Net Width:
830 mm
Package Level 1 Depth / Length:
1100 mm
Package Level 1 Height:
2550 mm
Package Level 1 Width:
1430 mm
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Sound dB (A):
71 dB(A)
Frequency (f):
50/60 Hz
Input Voltage (Uin):
380 ... 480 V
Mounting Type:
Cabinet-built
Output Current, Heavy-Duty Use:
725 A
Output Current, Light-Overload Use:
865 A
Output Current, Normal Use:
880 A
Output Power, Heavy-Duty Use:
400 kW
Output Power, Light-Overload Use:
500 kW
Output Power, Normal Use:
500 kW
Ecodesign Exemption:
Energy efficiency data is not provided for this cabinet-based drive. Cabinet built drives, with already conform modules, are excluded from the scope of the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.e).
Additional Information
Product Main Type:
ACQ580-07
Product Name:
Frequency converter
Classifications
UNSPSC:
39122001
Environmental
SCIP:
2361a3f3-2fee-41b4-bbdb-00925564e194 Finland (FI)
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
