ABB
Regular price
R 14,001.95 ZAR
Regular price
R 25,458.09 ZAR
Sale price
R 14,001.95 ZAR
Unit price
/
per
SKU:
Part Number:1SDA073909R1
Couldn't load pickup availability

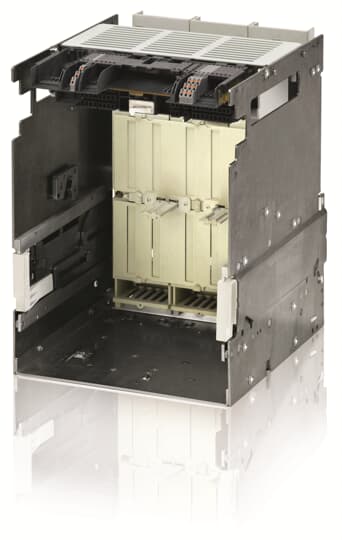

FIXED PART WITHDRAWABLE FOR C.BREAKER SACE EMAX2 E2.2 2000 THREE-POLE WITH REAR HORIZONTAL TERMINALS
Specifications
| Ordering |
| EAN: |
8015644778422 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85389099 |
| Order Code US and Canada: |
Z2C20A0XX |
| Dimensions |
| Product Net Width: |
317 mm |
| Product Net Height: |
425 mm |
| Product Net Depth / Length: |
383 mm |
| Product Net Weight: |
36 kg |
| Container Information |
| Package Level 1 Units: |
1 piece |
| Package Level 1 Width: |
570 mm |
| Package Level 1 Height: |
610 mm |
| Package Level 1 Depth / Length: |
515 mm |
| Package Level 1 Gross Weight: |
41 kg |
| Package Level 1 EAN: |
8015644778422 |
| Environmental |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information |
| Current Type: |
AC |
| Electrical Durability: |
2000 cycle |
| Mechanical Durability: |
25000 cycle60 cycles per hour |
| Number of Poles: |
3 |
| Product Main Type: |
SACE Emax 2 |
| Product Name: |
Fixed Part |
| Product Type: |
Fixed Part |
| Rated Current (In): |
2000 A |
| Rated Voltage (Ur): |
690 V |
| Rated Impulse Withstand Voltage (Uimp): |
acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui): |
AC 1000 V |
| Rated Operational Voltage: |
690 V AC |
| Rated Uninterrupted Current (Iu): |
2000 A |
| Standards: |
IEC |
| Sub-type: |
E2.2 |
| Terminal Connection Type: |
Rear flat Horizontal |
| Version: |
W FP |
| Certificates and Declarations (Document Number) |
| Data Sheet, Technical Information: |
1SDC200023D0209 |
| Declaration of Conformity - CE: |
9AKK106713A5902 |
| Environmental Information: |
Not Available |
| Instructions and Manuals: |
1SDH001000R0820 |
| REACH Declaration: |
9AKK108466A1425 |
| RoHS Information: |
9AKK108466A1424 |
| Classifications |
| ETIM 4: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: |
EC002043 - Chassis part power circuit breaker |
| ETIM 7: |
EC002043 - Chassis part power circuit breaker |
| ETIM 8: |
EC002043 - Chassis part power circuit breaker |
| Object Classification Code: |
Q |
| WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
